Bis(maltolato)oxovanadium(IV)

Catalog No. T22276 CAS 38213-69-3

Synonyms: BMOV, Bis maltolato oxovanadium,Bis(maltolato)oxovanadium (IV),bis maltolato oxo vanadium, Bis(maltolato)oxovanadium (IV)

Bis(maltolato)oxovanadium(IV) (BMOV) is a potent, reversible, competitive and orally active pan-PTP (protein tyrosine phosphatases)inhibitor with insulin-mimicking effects and anti-diabetic properties. BMOV is a potent insulin sensitize. BMOV is shown to improve cardiac dysfunctions in diabetic models. BMOV inhibits HCPTPA, PTP1B, HPTPβ and SHP2 with IC50s of 126 nM, 109 nM, 26 nM and 201 nM, respectivelyr[1][2].

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

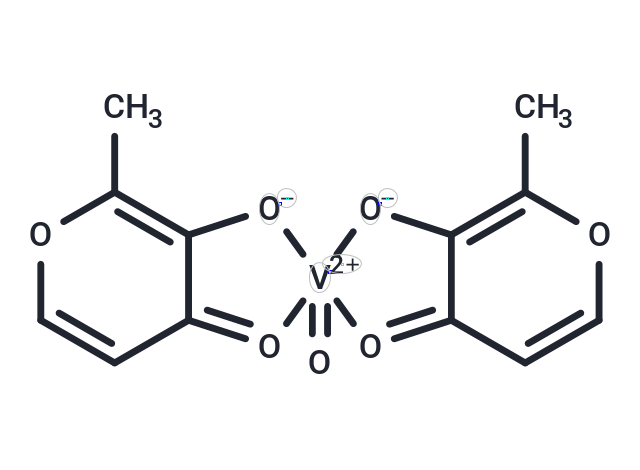

Bis(maltolato)oxovanadium(IV) Chemical Structure

Bis(maltolato)oxovanadium(IV), CAS 38213-69-3

Pack Size	Availability	Price/USD
5 mg	In stock	$ 39.00
10 mg	In stock	$ 59.00
25 mg	In stock	$ 122.00
50 mg	In stock	$ 197.00
100 mg	In stock	$ 313.00
200 mg	In stock	$ 468.00
500 mg	In stock	$ 753.00
1 mL * 10 mM (in DMSO)	In stock	$ 43.00

Bulk Inquiry

Select Batch

Purity: 99.10%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	Bis(maltolato)oxovanadium(IV) (BMOV) is a potent, reversible, competitive and orally active pan-PTP (protein tyrosine phosphatases)inhibitor with insulin-mimicking effects and anti-diabetic properties. BMOV is a potent insulin sensitize. BMOV is shown to improve cardiac dysfunctions in diabetic models. BMOV inhibits HCPTPA, PTP1B, HPTPβ and SHP2 with IC50s of 126 nM, 109 nM, 26 nM and 201 nM, respectivelyr[1][2].
Targets&IC50	HCPTPA:126 nM (IC50), PTP1B:109 nM (IC50), HPTPβ:26 nM (IC50), SHP2:201 nM (IC50)
In vitro	BMOV treatment enhances the phosphorylation of the insulin receptor and of the insulin signalling key intermediate Akt. BMOV treatment also resultes in an increased glucose uptake in C2C12 cells[1].
In vivo	BMOV (0.75-3.0 mmol; intraperitoneal injection; twice weekly; for 6 weeks; Male C57BL/6J mice) treatment ameliorates the metabolic phenotype, as evidenced by reduced body weight, improved insulin sensitivity and glucose tolerance.
Animal Research	BMOV (0.75-3.0 mmol; intraperitoneal injection; twice weekly; for 6 weeks; Male C57BL/6J mice) treatment ameliorates the metabolic phenotype, as evidenced by reduced body weight, improved insulin sensitivity and glucose tolerance.

Synonyms	BMOV, Bis maltolato oxovanadium,Bis(maltolato)oxovanadium (IV),bis maltolato oxo vanadium, Bis(maltolato)oxovanadium (IV)
Molecular Weight	317.15
Formula	C12H10O7V
CAS No.	38213-69-3

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 20 mg/mL (63.06 mM)

References and Literature

1. Janine Krüger, et al. Inhibition of Src homology 2 domain-containing phosphatase 1 increases insulin sensitivity in high-fat diet-induced insulin-resistant mice. FEBS Open Bio. 2016 Jan 4;6(3):179-89. 2. Kevin G Peters, et al. Mechanism of insulin sensitization by BMOV (bis maltolato oxo vanadium); unliganded vanadium (VO4) as the active component. J Inorg Biochem. 2003 Aug 1;96(2-3):321-30. 3. Cong XQ, et al. Biol Trace Elem Res. 2016 Oct;173(2):390-8.

Citations

1. Qiu X, Hou X, Yang Y, et al.An in-line method for high-throughput screening of protein tyrosine phosphatase receptor type O inhibitors by capillary electrophoresis based on electrophoretically mediated microanalysis.Journal of Chromatography A.2023: 464511.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Phosphatase Inhibitor Library Metabolism Compound Library Orally Active Compound Library Bioactive Compounds Library Max Glycometabolism Compound Library ReFRAME Related Library NO PAINS Compound Library Bioactive Compound Library

Related Products

Related compounds with same targets

Pentamidine dihydrochloride 3,4-Secocucurbita-4,24-diene-3,26,29-trioic acid Anticancer agent 143 Taraxerol acetate h-NTPDase-IN-2 Anticancer agent 142 ML400 h-NTPDase-IN-4

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
