NS-2028

Catalog No. T16344 CAS 204326-43-2

NS-2028 is a highly selective soluble Guanylyl Cyclase (sGC) inhibitor (IC50: 30 nM and 200 nM for basal and NO-stimulated enzyme activity). It is commonly used in the research of nitric oxide signaling pathways. NS-2028 inhibits soluble Guanylyl Cyclase activity in homogenates of mouse cerebellum and neuronal NO synthase (IC50: 17 nM and 20 nM). NS-2028 inhibits 3-morpholino-sydnonimine (SIN-1)-elicited formation of cyclic GMP in human cultured umbilical vein endothelial cells (IC50: 30 nM). NS-2028 inhibits NO-dependent relaxant responses in non-vascular smooth muscle completely (1 μM). NS-2028 decreases vascular endothelial growth factor-induced angiogenesis and permeability.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

NS-2028, CAS 204326-43-2

Pack Size	Availability	Price/USD
1 mg	In stock	$ 55.00
2 mg	In stock	$ 81.00
5 mg	In stock	$ 133.00
10 mg	In stock	$ 243.00
25 mg	In stock	$ 497.00
50 mg	In stock	$ 743.00
100 mg	In stock	$ 1,050.00
1 mL * 10 mM (in DMSO)	In stock	$ 148.00

Bulk Inquiry

Select Batch

Purity: 99.44%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	NS-2028 is a highly selective soluble Guanylyl Cyclase (sGC) inhibitor (IC50: 30 nM and 200 nM for basal and NO-stimulated enzyme activity). It is commonly used in the research of nitric oxide signaling pathways. NS-2028 inhibits soluble Guanylyl Cyclase activity in homogenates of mouse cerebellum and neuronal NO synthase (IC50: 17 nM and 20 nM). NS-2028 inhibits 3-morpholino-sydnonimine (SIN-1)-elicited formation of cyclic GMP in human cultured umbilical vein endothelial cells (IC50: 30 nM). NS-2028 inhibits NO-dependent relaxant responses in non-vascular smooth muscle completely (1 μM). NS-2028 decreases vascular endothelial growth factor-induced angiogenesis and permeability.
Targets&IC50	sGC:30 nM
In vitro	NS-2028 (10 μM; 30 mins) decreases VEGF-induced EC migration by inhibiting p38 MAPK activation. NS-2028 (10 μM; 24 hours) inhibits 25% cell number in comparation with those grown in the presence of a vehicle[2].
In vivo	In the avascular rabbit cornea, NS-2028 (p.o; 1 g/L; 8 days) displays an obvious reduction of new vessel formation in response to VEGF pellet implants[2].

Molecular Weight	269.05

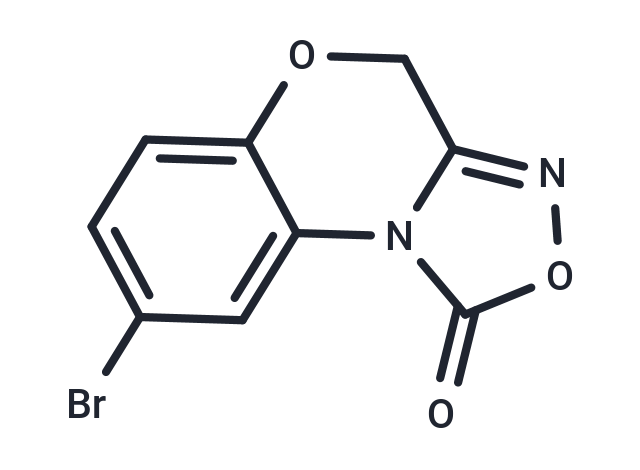

Formula	C9H5BrN2O3
CAS No.	204326-43-2

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 250 mg/mL (929.20 mM), Sonification is recommended.

References and Literature

1. Olesen SP, et al. Characterization of NS 2028 as a specific inhibitor of soluble guanylyl cyclase. Br J Pharmacol. 1998 Jan;123(2):299-309. 2. Morbidelli L, et al. The soluble guanylyl cyclase inhibitor NS-2028 reduces vascular endothelial growth factor-induced angiogenesis and permeability. Am J Physiol Regul Integr Comp Physiol. 2010 Mar;298(3):R824-32.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library GPCR Compound Library Bioactive Compound Library Angiogenesis related Compound Library NO PAINS Compound Library Bioactive Compounds Library Max

Related Products

Related compounds with same targets

Nitroprusside disodium dihydrate Glutaminyl Cyclase Inhibitor 1 Vericiguat Plecanatide Linaclotide Methylene Blue trihydrate Ataciguat Lificiguat

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
