PF-04634817

Catalog No. T12419L CAS 1228111-63-4

PF-0463481 is safe and well-tolerated and has the potential for the study of diabetic nephropathy. PF-0463481 is an effective and orally active dual CCR2/CCR5 antagonist. It also has comparable human and rodent CCR2 potency (rat IC50=20.8 nM). PF-0463481 shows 10-20 fold less rodent CCR5 potency (rat IC50=470 nM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

PF-04634817, CAS 1228111-63-4

Pack Size	Availability	Price/USD
25 mg	8-10 weeks	$ 1,820.00
50 mg	8-10 weeks	$ 2,380.00
100 mg	8-10 weeks	$ 3,100.00

Bulk Inquiry

This compound is a customized synthesis product. We have a strong synthesis team with excellent synthesis technology and capabilities. However, due to various objective factors, there is a low probability that the synthesis will not be successful. If you need to learn more, please feel free to consult us, we will serve you wholeheartedly.

Biological Description

Chemical Properties

Storage & Solubility Information

Description	PF-0463481 is safe and well-tolerated and has the potential for the study of diabetic nephropathy. PF-0463481 is an effective and orally active dual CCR2/CCR5 antagonist. It also has comparable human and rodent CCR2 potency (rat IC50=20.8 nM). PF-0463481 shows 10-20 fold less rodent CCR5 potency (rat IC50=470 nM).
Targets&IC50	CCR5:470 nM, CCR2 (rat):20.8 nM
In vivo	PF-04634817 (p.o.; 30 mg/kg; once daily; 31 days intervention (weeks 2-15 after Streptozotocin)) intervention at the onset of diabetes (week 2) has no impact on the fasting blood glucose levels in diabetic Nos3-/- 221 mice. Early intervention with PF-04634817 induces an additional increase in glycated hemoglobin (HbA1c) levels. The development of diabetes causes a marked increase in the levels of glycated haemoglobin (HbA1c) in Nos3-/- mice [1].

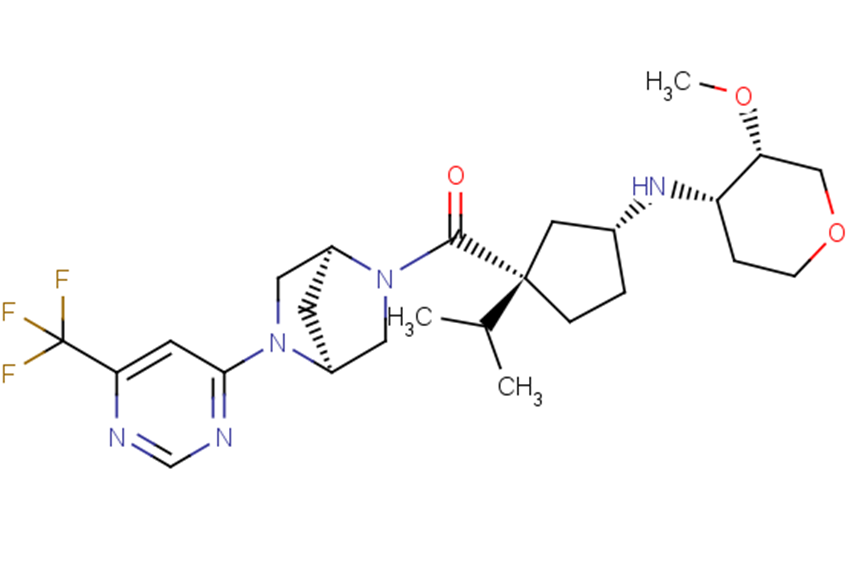

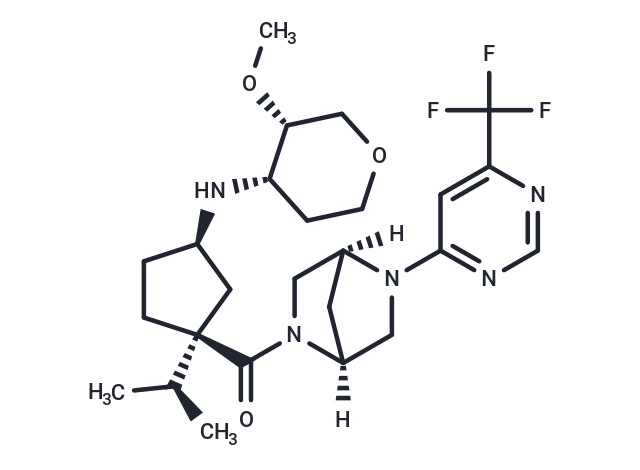

Molecular Weight	511.58
Formula	C25H36F3N5O3
CAS No.	1228111-63-4

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 50 mg/mL (97.74 mM), Sonification is recommended.

References and Literature

1. Tesch GH, et al. Combined inhibition of CCR2 and ACE provides added protection against progression of diabetic nephropathy in Nos3-deficient mice.Am J Physiol Renal Physiol. 2019 Dec 1;317(6):F1439-F1449. 2. Gale JD, et al. A CCR2/5 Inhibitor, PF-04634817, Is Inferior to Monthly Ranibizumab in the Treatment of Diabetic Macular Edema. Invest Ophthalmol Vis Sci. 2018 May 1;59(6):2659-2669. 3. Gale JD, et al. Effect of PF-04634817, an Oral CCR2/5 Chemokine Receptor Antagonist, on Albuminuria in Adults with Overt Diabetic Nephropathy. Kidney Int Rep. 2018 Aug 3;3(6):1316-1327.

Related Products

Related compounds with same targets

Molibresib besylate BMS-817399 CCR2 antagonist 5 TAK-779 AZD2098 CCX354 GW 766994 R243

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
