Ponatinib

Catalog No. T2372 CAS 943319-70-8

Synonyms: AP24534

Ponatinib (AP24534) is an orally available, multitargeted kinase inhibitor (IC50s: 0.37/1.1/1.5/2.2/5.4 nM for Abl, PDGFRα, VEGFR2, FGFR1, and Src, respectively).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

Ponatinib, CAS 943319-70-8

Pack Size	Availability	Price/USD
10 mg	In stock	$ 50.00
50 mg	In stock	$ 64.00
100 mg	In stock	$ 100.00
200 mg	In stock	$ 141.00
1 mL * 10 mM (in DMSO)	In stock	$ 50.00

Bulk Inquiry

Select Batch

Purity: 99.74%

Purity: 99.58%

Purity: 99.57%

Purity: 98%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	Ponatinib (AP24534) is an orally available, multitargeted kinase inhibitor (IC50s: 0.37/1.1/1.5/2.2/5.4 nM for Abl, PDGFRα, VEGFR2, FGFR1, and Src, respectively).
Targets&IC50	PDGFRα:1.1 nM (cell free), c-Src:5.4 nM (cell free), Abl:0.37 nM (cell free), FGFR1:2.2 nM (cell free), Lyn:0.24 nM (cell free), VEGFR2:1.5 nM (cell free)
In vitro	Ponatinib (AP24534) potently inhibited native ABL (IC50: 0.37 nM), ABL T315I (IC50: 2.0 nM), and other clinically important ABL kinase domain mutants (IC50: 0.30–0.44 nM). AP24534 also inhibited SRC (IC50: 5.4 nM) and members of the VEGFR, FGFR, and PDGFR families of receptor tyrosine kinases. AP24534 did not inhibit Aurora kinase family members, nor did it inhibit the insulin receptor or CDK2/Cyclin E. AP24534 potently inhibited proliferation of Ba/F3 cells expressing native BCR-ABL (IC50: 0.5 nM). All BCR-ABL mutants tested remained sensitive to AP24534 (IC50: 0.5–36 nM) including BCR-ABLT315I (IC50: 11 nM) [1]. Treatment with ponatinib efficiently inhibited the growth of CMPs expressing Hes1 with F/P, F/P-T674I, or F/P-D842V with an IC50 of 0.15 nM, 0.35 nM, or 1.71 nM, respectively. In accordance, ponatinib dose-dependently suppressed the activation of F/P and its downstream STAT5 and ERK in these cytokine-independent cells [2]. Ponatinib potently inhibits receptor phosphorylation and cellular proliferation with IC50 values comparable to those required for inhibition of BCR-ABL (0.3 to 20 nmol/L) [3].
In vivo	Daily oral treatment with 2.5 or 5 mg/kg AP24534 for 19 days prolonged median survival to 27.5 and 30 days, respectively. In a xenograft model of Ba/F3 BCR-ABLT315I cells, tumor growth was inhibited by AP24534 in a dose-dependent manner compared to vehicle-treated mice, with significant suppression of tumor growth upon daily oral dosing at 10 and 30 mg/kg. Daily oral dosing of 50 mg/kg AP24534 caused significant tumor regression, with a 96% reduction in mean tumor volume at the final measurement compared to the start of treatment [1]. Ponatinib (1–25 mg/kg, p.o.) was administered orally, once daily for 28 days, to mice bearing MV4-11 xenografts. ponatinib potently inhibited tumor growth in a dose-dependent manner. Administration of 1 mg/kg led to significant inhibition of tumor growth (TGI = 46%) and doses of 2.5 mg/kg or greater resulted in tumor regression. Dosing with 10 or 25 mg/kg led to complete and durable tumor regression [3].
Kinase Assay	AP24534 was profiled against >100 kinases by Reaction Biology Corporation using the Kinase Hotspot assay, which utilizes 10 μM [33P]-ATP, recombinant kinase domain, peptide substrate, and a range of 10 concentrations of inhibitor to establish an IC50 value [1].
Cell Research	Ba/F3 cell lines were distributed in 96-well plates (4 × 10^3 cells/well) and incubated with escalating concentrations of AP24534 for 72 hr. The inhibitor ranges used were: 0–625 nM for cells expressing BCR-ABL and 0–10,000 nM for BCR-ABL negative cells. Proliferation was measured using an MTS-based viability assay. IC50 values are reported as the mean of three independent experiments performed in quadruplicate. For cell proliferation experiments with CML or normal primary cells, mononuclear cells were plated in 96-well plates (5 × 10^4 cells/well) over graded concentrations of AP24534 (0–1000 nM) in RPMI supplemented with 10% FBS, L-glutamine, penicillin/streptomycin, and 100 μM β-mercaptoethanol. Following a 72 hr incubation, cell viability was assessed by subjecting cells to an MTS assay. All values were normalized to the control wells with no drug [1].
Animal Research	Briefly, tumor xenografts were established by the subcutaneous implantation of MV4-11 cells (1 × 10^7 in 50% Matrigel) into the right flank of female CB.17 severe combined immunodeficient mice and dosing was initiated when the average tumor volume reached approximately 200 mm^3. Ponatinib was formulated in aqueous 25 mmol/L citrate buffer (pH = 2.75) and mice were dosed orally once daily for 4 weeks. The tumors were measured in 2 dimensions (length and width) with a caliper in millimeters. Tumor volume (mm3) was calculated with the following formula: tumor volume = (length × width^2)/2. Tumor growth inhibition (TGI) was calculated as follows: TGI = (1 ? ΔT/ΔC) × 100, where ΔT stands for mean tumor volume change of each treatment group and ΔC for mean tumor volume change of control group. The tumor volume data were collected and analyzed with a 1-way ANOVA test to determine the overall difference among groups. Each ponatinib treatment group was further compared to the vehicle control group for statistical significance using Dunnett's Multiple Comparison Test. A P-value less than 0.05 was considered to be statistically significant and a P-value less than 0.01 to be highly statistically significant [3].

Synonyms	AP24534
Molecular Weight	532.56

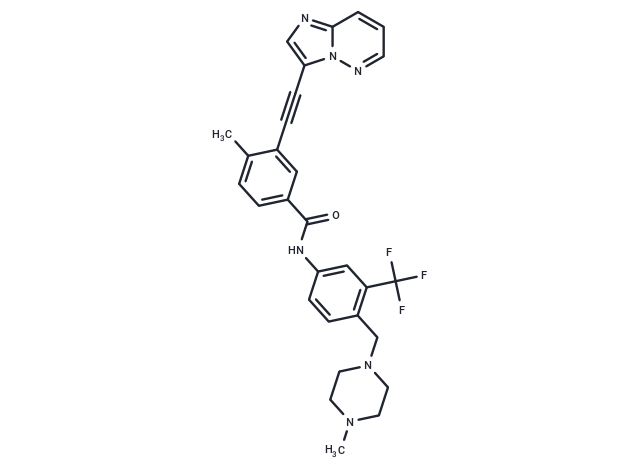

Formula	C29H27F3N6O
CAS No.	943319-70-8

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

Ethanol: 26.6 mg/mL (50 mM)

DMSO: 53.3 mg/mL (100 mM)

References and Literature

1. O'Hare T, et al. AP24534, a pan-BCR-ABL inhibitor for chronic myeloid leukemia, potently inhibits the T315I mutant and overcomes mutation-based resistance. Cancer Cell, 2009, 16(5), 401-412. 2. Uchida T, et al. Hes1 upregulation contributes to the development of FIP1L1-PDGRA-positive leukemia in blast crisis. Exp Hematol. 2014 May;42(5):369-379.e3. 3. Gozgit JM, et al. Potent activity of ponatinib (AP24534) in models of FLT3-driven acute myeloid leukemia and other hematologic malignancies. Mol Cancer Ther, 2011, 10(6), 1028-1035. 4. Lin H, Lu P, Zhou M, et al. Purification of recombinant human fibroblast growth factor 13 in E. coli and its molecular mechanism of mitogenesis[J]. Applied microbiology and biotechnology. 2019: 1-11.

Citations

1. Cheng S, Jin P, Li H, et al. Evaluation of CML TKI Induced Cardiovascular Toxicity and Development of Potential Rescue Strategies in a Zebrafish Model. Frontiers in Pharmacology. 2021: 2866. 2. Lin H, Lu P, Zhou M, et al. Purification of recombinant human fibroblast growth factor 13 in E. coli and its molecular mechanism of mitogenesis. Applied Microbiology and Biotechnology. 2019: 1-11 3. Yan H, Wu W, Hu Y, et al.Regorafenib inhibits EphA2 phosphorylation and leads to liver damage via the ERK/MDM2/p53 axis.Nature Communications.2023, 14(1): 2756. 4. Oeller M, Jaksch-Bogensperger H, Templin M, et al.Transcription Factors STAT3 and MYC Are Key Players of Human Platelet Lysate-Induced Cell Proliferation.International Journal of Molecular Sciences.2022, 23(24): 15782.

Related compound libraries

This product is contained In the following compound libraries：

Tyrosine Kinase Inhibitor Library Anti-Cancer Drug Library Inhibitor Library Kinase Inhibitor Library FDA-Approved Kinase Inhibitor Library Drug Repurposing Compound Library Anti-Cancer Approved Drug Library EMA Approved Drug Library Anti-Cancer Clinical Compound Library Anti-Cancer Active Compound Library

Related Products

Related compounds with same targets

KI8751 JNJ-38158471 ZM323881 hydrochloride Linifanib Nintedanib esylate JK-P3 VEGFR-2-IN-37 Regorafenib monohydrate

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
