TBB

Catalog No. T2695 CAS 17374-26-4

Synonyms: Casein Kinase II Inhibitor I, NSC 231634, 4,5,6,7-tetrabromobenzotriazole

TBB (NSC-231634)(NSC-231634) is a highly selective, ATP/GTP-competitive inhibitor of casein kinase-2 (CK2).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

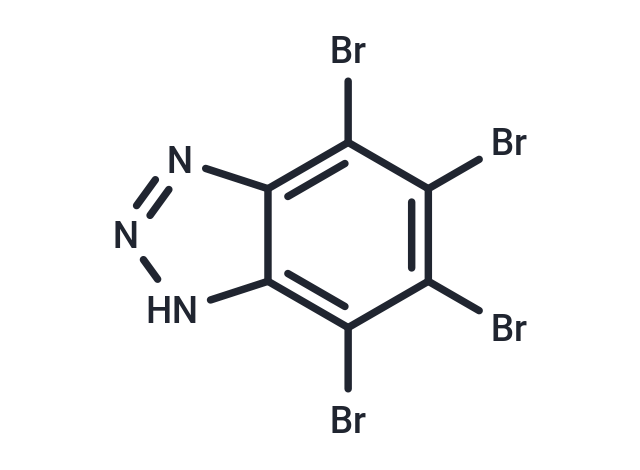

TBB, CAS 17374-26-4

Pack Size	Availability	Price/USD
5 mg	In stock	$ 39.00
10 mg	In stock	$ 54.00
25 mg	In stock	$ 85.00
50 mg	In stock	$ 138.00
100 mg	In stock	$ 209.00
200 mg	In stock	$ 325.00
1 mL * 10 mM (in DMSO)	In stock	$ 50.00

Bulk Inquiry

Select Batch

Purity: 99.45%

Purity: 98.51%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	TBB (NSC-231634)(NSC-231634) is a highly selective, ATP/GTP-competitive inhibitor of casein kinase-2 (CK2).
Targets&IC50	CK2:0.4 μM(Ki), CK1:47 μM(Ki)
In vitro	Investigation of the inhibitory power of TBB with a panel of 33 protein kinases shows highest potency for CK2 (casein kinase 2) (human CK2: IC50=1.6 μM at 100 μM ATP). TBB also inhibits three other kinases with less potency: CDK2 (IC50=15.6 μM), phosphorylase kinase (IC50=8.7 μM) and glycogen synthase kinase 3β (GSK3β) (IC50=11.2 μM). All other kinases tested have IC50 values 50-fold greater than that for CK2[1]. The viability of the androgen insensitive PC-3 cells may be diminished by TBB (60 μM TBB) acting either alone or combined with anticancer agents CPT or TRAIL when a proper time schedule of the administration is applied. However, the time schedule-dependent activity of TBB does not come from its effect on apoptosis in PC-3 cells[2]. It is because that TBB is an ATP/GTP competitive inhibitor of protein kinase casein kinase-2 (CK2) which has been examined against a panel of 33 protein kinases, either Ser/Thr- or Tyr-specific. In the presence of 10 μM TBB (and 100 μM ATP) only CK2 is drastically inhibited (>85%) whereas three kinases (phosphorylase kinase, glycogen synthase kinase 3L and cyclin-dependent kinase 2/cyclin A) underwent moderate inhibition, with IC50 values one-two orders of magnitude higher than CK2 (IC50=0.9 μM). TBB also inhibits endogenous CK2 in cultured Jurkat cells[3].
In vivo	The extent of retinal neovascularization in a mouse OIR model is reduced by approximately 60% after treatment with TBB (6 days at 60 mg/kg per day) which is the most specific CK2 inhibitor known[4].
Kinase Assay	Kinase assay: Total kinase activity of CaMKII, determined in a standard 2 min assay (100 μL), contained 35 mM HEPES, 10 mM MgCl2, 1 mM CaCl2, 10 μg of chicken gizzard myosin 20-kD light chain, 0.1 μM calmodulin, and 10 μM [γ-33]ATP at 30 °C. The kinase reaction is halted by adding 1 mL of 10% trichloroacetic acid.
Cell Research	TBB is dissolved in DMSO and stored, and then diluted with appropriate media before use[2]. PC-3 or HeLa cells are cultured routinely in RPMI-1640 and DMEM media, respectively, which are supplemented with 10% FBS, Penicillin (100 U/mL) and Streptomycin (100 μg/mL) at 37°C in a humidified atmosphere of 5% CO2. Cells are seeded at 5×104 cells/well (PC-3) or 2×104 (HeLa) in 24-wells plates and cultured for 72 h. TBB (final concentration 60 μM), CPT (final concentration 5.8 nM), 2-deoxyglucose (2-DG; final concentration 0.5 mM) or TRAIL (final concentration 13.3 ng/mL) are added to the medium individually or in a combination and the cells are cultured for additional time, indicated on each figure. After treatment, the medium with the agent is removed and 500 μL of MTT mixture (0.5 mg/mL for PC-3 and 5.0 mg/mL for HeLa cells in medium without phenol red) is added to each well and incubated for an additional 1 h at 37°C. The formazan crystals are diluted in 250 μL of DMSO. The absorbance is measured at 570 nm[2].

Synonyms	Casein Kinase II Inhibitor I, NSC 231634, 4,5,6,7-tetrabromobenzotriazole
Molecular Weight	434.71
Formula	C6HBr4N3
CAS No.	17374-26-4

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 43.5 mg/mL(100 mM)

Ethanol: 100 mM

References and Literature

1. De Moliner E, et al. Alternative binding modes of an inhibitor to two different kinases. Eur J Biochem. 2003 Aug;270(15):3174-81. 2. Orzechowska E, et al. Time schedule-dependent effect of the CK2 inhibitor TBB on PC-3 human prostate cancer cell viability. Oncol Rep. 2012 Jan;27(1):281-5. 3. Sarno S, et al. Selectivity of 4,5,6,7-tetrabromobenzotriazole, an ATP site-directed inhibitor of protein kinase CK2 ('casein kinase-2'). FEBS Lett. 2001 May 4;496(1):44-8. 4. Ljubimov AV, et al. Involvement of protein kinase CK2 in angiogenesis and retinal neovascularization. Invest Ophthalmol Vis Sci. 2004 Dec;45(12):4583-91. 5. Wang C, De Su L, Shao Y M, et al. Involvement of PML-I in reformation of PML nuclear bodies in acute promyelocytic leukemia cells by leptomycin B[J]. Toxicology and applied pharmacology. 2019, 384: 114775. 6. Zhu S, Cheng X, Wang R, et al. Restoration of microRNA function impairs MYC-dependent maintenance of MLL leukemia[J]. Leukemia. 2020: 1-5.

Citations

1. Zhu S, Cheng X, Wang R, et al. Restoration of microRNA function impairs MYC-dependent maintenance of MLL leukemia. Leukemia. 2020: 1-5 2. Wang C, De Su L, Shao Y M, et al. Involvement of PML-I in reformation of PML nuclear bodies in acute promyelocytic leukemia cells by leptomycin B. Toxicology and Applied Pharmacology. 2019, 384: 114775
