PF-04691502

Catalog No. T6251 CAS 1013101-36-4

Synonyms: PF4691502

PF-04691502 is a potent and selective inhibitor of PI3K and mTOR kinases with antitumor activity.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

PF-04691502, CAS 1013101-36-4

Pack Size	Availability	Price/USD
1 mg	In stock	$ 30.00
2 mg	In stock	$ 38.00
5 mg	In stock	$ 61.00
10 mg	In stock	$ 85.00
25 mg	In stock	$ 126.00
50 mg	In stock	$ 207.00
100 mg	In stock	$ 369.00
1 mL * 10 mM (in DMSO)	In stock	$ 63.00

Bulk Inquiry

Select Batch

Purity: 98.63%

Purity: 98%

Purity: 96.27%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	PF-04691502 is a potent and selective inhibitor of PI3K and mTOR kinases with antitumor activity.
Targets&IC50	PI3Kγ:1.9 nM(Ki), pAkt (S473):3.8 nM, PI3Kα:1.8 nM(Ki), PI3Kβ:2.1 nM(Ki), PI3Kδ:1.6 nM(Ki)
In vitro	PF-04691502 potently inhibits recombinant class I PI3K and mTOR in biochemical assays and suppresses transformation of avian fibroblasts mediated by wild-type PI3K γ, δ, or mutant PI3Kα. In PIK3CA-mutant and PTEN-deleted cancer cell lines, PF-04691502 reduces phosphorylation of AKT T308 and AKT S473 (IC(50) of 7.5-47 nM and 3.8-20 nM, respectively) and inhibits cell proliferation (IC(50) of 179-313 nM). PF-04691502 inhibits mTORC1 activity in cells as measured by PI3K-independent nutrient stimulated assay, with an IC(50) of 32 nM and inhibits the activation of PI3K and mTOR downstream effectors including AKT, FKHRL1, PRAS40, p70S6K, 4EBP1, and S6RP. Short-term exposure to PF-04691502 predominantly inhibits PI3K, whereas mTOR inhibition persists for 24 to 48 hours. PF-04691502 induces cell cycle G(1) arrest, concomitant with upregulation of p27 Kip1 and reduction of Rb. [1]
In vivo	Antitumor activity of PF-04691502 is observed in U87 (PTEN null), SKOV3 (PIK3CA mutation), and gefitinib- and erlotinib-resistant non-small cell lung carcinoma xenografts. [1] PF-04691502 inhibits tumor growth at 7 days by 72%. FDG-PET imaging revealed that PF-04691502 reduces glucose metabolism dramatically. Tissue biomarkers of PI3K/mTOR pathway activity, p-AKT (S473), and p-RPS6 (S240/244), are also dramatically inhibited following PF-04691502 treatment. [2]
Kinase Assay	Kinase Assay: The fluorescence polarization assay for ATP competitive inhibition is done as follows: mPI3Kα dilution solution (90 nM) is prepared in fresh assay buffer (50 mM Hepes pH 7.4, 150 mM NaCl, 5 mM DTT, 0.05% CHAPS) and kept on ice. The enzyme reaction contains 0.5 nM mouse PI3Kα (p110α/p85α complex purified from insect cells), 30 μM PIP2, PF-04691502 (0, 1, 4, and 8 nM), 5 mM MgCl2, and 2-fold serial dilutions of ATP (0–800 μM). Final dimethyl sulfoxide is 2.5%. The reaction is initiated by the addition of ATP and terminated after 30 minutes with 10 mM EDTA. In a detection plate, 15 uL of detector/probe mixture containing 480 nM GST-Grp1PH domain and 12 nM TAMRA tagged fluorescent PIP3 in assay buffer is mixed with 15 uL of kinase reaction mixture. The plate is shaken for 3 minutes, and incubated for 35 to 40 minutes before reading on an LJL Analyst HT.
Cell Research	BT20, U87 mg, and SKOV3 cells are plated at 3,000 cell/well in 96-well culture plates in growth medium with 10% FBS. Cells are incubated overnight and treated with DMSO (0.1% final) or serial diluted compound for 3 days. Resazurin is added to 0.1 mg/mL. Plates are incubated at 37 °C in 5% CO2 for 3 hours. Fluorescence signals are read as emission at 590 nm after excitation at 530 nm. IC50 values are calculated by plotting fluorescence intensity to drug concentration in nonlinear curve(Only for Reference)

Synonyms	PF4691502
Molecular Weight	425.48

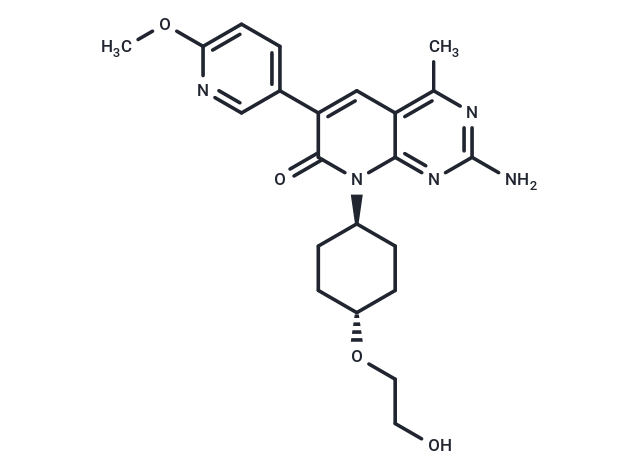

Formula	C22H27N5O4
CAS No.	1013101-36-4

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 14 mg/mL (32.9 mM)

Ethanol: < 1 mg/mL (insoluble or slightly soluble)

H2O: < 1 mg/mL (insoluble or slightly soluble)

References and Literature

1. Yuan J, Mol Cancer Ther, 2011, 10(11), 2189-2199 2. Kinross KM, Mol Cancer Ther, 2011, 10(8), 1440-1449 3. Simmons BH, Cancer Chemother Pharmacol, 2012, 70(2), 213-220 4. Zhou Z, Cui D, Sun M H, et al. CAFs‐derived MFAP5 promotes bladder cancer malignant behavior through NOTCH2/HEY1 signaling[J]. The FASEB Journal. 2020.

Citations

1. Zhou Z, Cui D, Sun M H, et al. CAFs‐derived MFAP5 promotes bladder cancer malignant behavior through NOTCH2/HEY1 signaling. The FASEB Journal. 2020

Related compound libraries

This product is contained In the following compound libraries：

Tyrosine Kinase Inhibitor Library Kinase Inhibitor Library Anti-Cancer Clinical Compound Library Anti-Cancer Drug Library Drug Repurposing Compound Library Anti-Cancer Active Compound Library Inhibitor Library Anti-Liver Cancer Compound Library Pyroptosis Compound Library Oxidation-Reduction Compound Library

Related Products

Related compounds with same targets

Bakkenolide A N-Feruloyloctopamine Glaucocalyxin A Polyphyllin I 2,3-Butanediol DB07107 API-1 A-443654

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
