GNE684

Catalog No. T11442 CAS 2438637-64-8

GNE684 is a potent inhibitor of potent receptor interacting protein 1 (RIP1) with average Ki app values of 21 nM, 189 nM and 691 nM for human mouse and rat RIP1, respectively [1].

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

GNE684, CAS 2438637-64-8

Please contact us for prices and availability for the specification of product you are interested at.
Product consultation

Purity: 98%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	GNE684 is a potent inhibitor of potent receptor interacting protein 1 (RIP1) with average Ki app values of 21 nM, 189 nM and 691 nM for human mouse and rat RIP1, respectively [1].
Targets&IC50	mouse RIP1:189 nM , human RIP1:21 nM , rat RIP1:691 nM
In vitro	GNE684 (20 μM; 20 hours) potently inhibits RIP1 kinase-driven cell death in multiple human and mouse cell lines [1]. GNE684 (20 μM; 0-60 minutes) disrupts TBZ (2 μM BV6, 20 ng/ml TNF, 20 μM zVAD)-induced RIP1 autophosphorylation, interactions between RIP1 and RIP3, RIP3 autophosphorylation, and phosphorylation of MLKL by RIP3 [1]. Cell Viability Assay [1] Cell Line: L929 cells, Jurkat cells, MEFs Concentration: 20 μM Incubation Time: 20 hours Result: Inhibited RIP1 kinase driven cell death effectively in several human and mouse cell lines. Western Blot Analysis [1] Cell Line: HT-29 cells, J774A.1 cells Concentration: 0 μM, 20 μM Incubation Time: 0 minute, 15 minutes, 60 minutes Result: Disrupted TBZ (2 μM BV6, 20 ng/ml TNF, 20μM zVAD)-induced RIP1 autophosphorylation, interactions between RIP1 and RIP3, RIP3 autophosphorylation, and phosphorylation of MLKL by RIP3.
In vivo	GNE684 did not impact on overall survival or tumor growth in the KPP or KPR (LSL-Kras G12D/+; p16/p19 fl/wt; Trp53 R270H/wt; Pdx1-cre) PDAC models [1]. GNE684 (50mg/kg; p.o. twice daily) inhibits colitis and ileitis caused by NEMO deficiency in intestinal epithelial cells (IECs) [1]. Animal Model: Nemo fl/fl Villin.creERT2 mice (NEMO IEC-KO) [1] Dosage: 50 mg/kg Administration: Oral administration; twice daily; from days 2–6 treated with tamoxifen Result: Almost completely protected the NEMO-deficient intestines from colitis and ileitis.

Molecular Weight	432.48

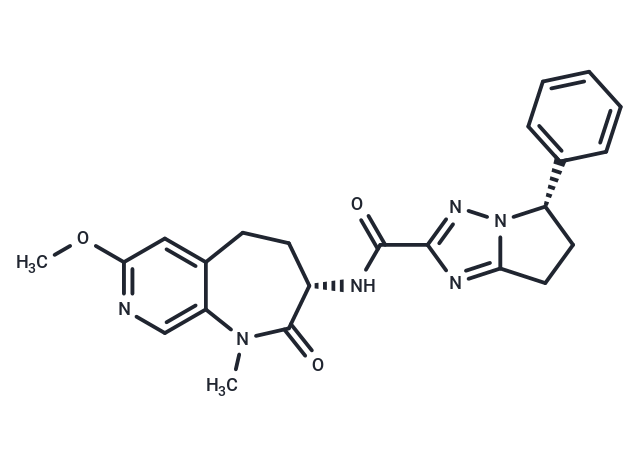

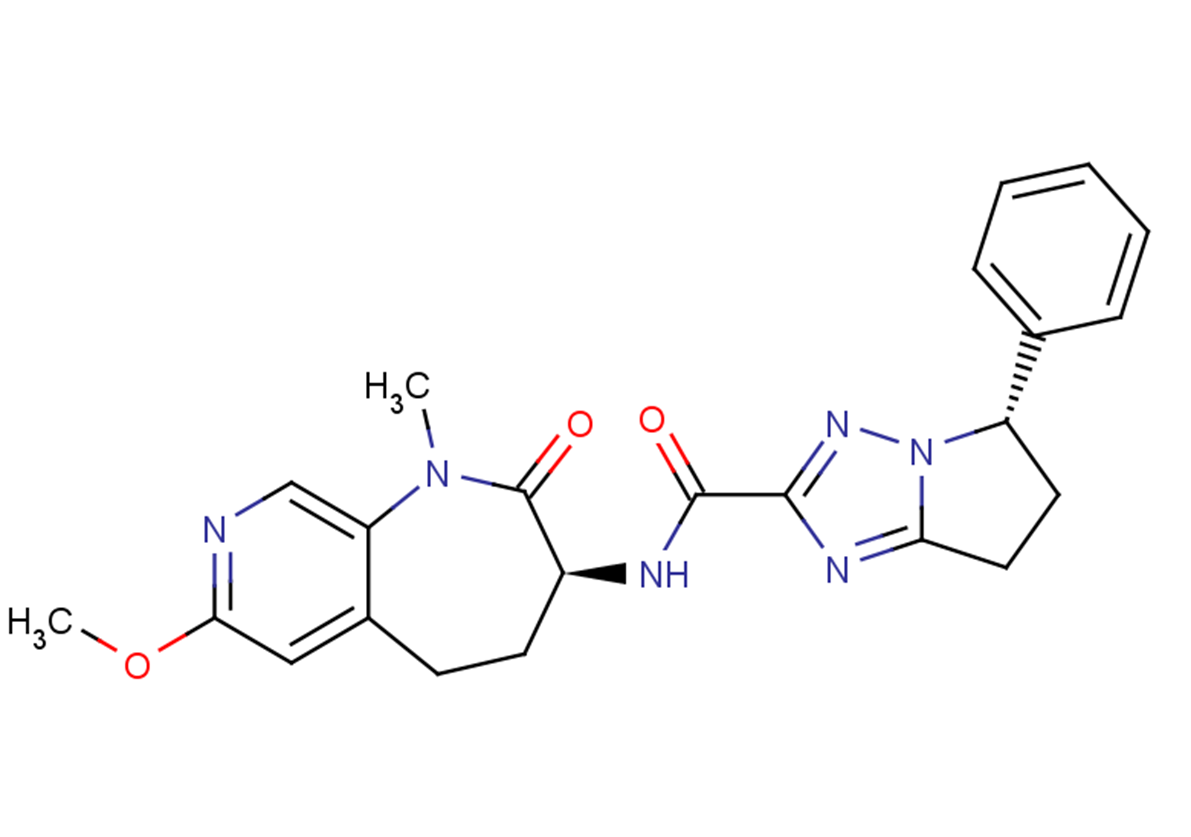

Formula	C23H24N6O3
CAS No.	2438637-64-8

Storage

Powder: -20°C for 3 years

In solvent: -80°C for 2 years

Solubility Information

( < 1 mg/ml refers to the product slightly soluble or insoluble )

References and Literature

1. Patel S, et al. RIP1 inhibition blocks inflammatory diseases but not tumor growth or metastases. Cell Death Differ. 2019 May 17.

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
