AZ-5104

Catalog No. T2491 CAS 1421373-98-9

AZ5104 is a potent EGFR inhibitor.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

AZ-5104, CAS 1421373-98-9

Pack Size	Availability	Price/USD
5 mg	In stock	$ 48.00
10 mg	In stock	$ 68.00
25 mg	In stock	$ 125.00
50 mg	In stock	$ 197.00
100 mg	In stock	$ 265.00
200 mg	In stock	$ 333.00
1 mL * 10 mM (in DMSO)	In stock	$ 53.00

Bulk Inquiry

Select Batch

Purity: 99.9%

Purity: 99.59%

Purity: 98.45%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	AZ5104 is a potent EGFR inhibitor.
Targets&IC50	EGFR (L861Q):1 nM, EGFR (L858R):6 nM, ERB4:7 nM, EGFR (WT):25 nM, EGFR (L858R/T790M):<1 nM
In vitro	AZ5104 shows great potency against ex19del (2 nM in PC-9), T790M (2 nM in H1975), and wild-type EGFR (33 nM in LOVO) cell lines. AZ5104 causes inhibition of cell viability with IC50 of 3.3 nM, 2.6 nM, 80 nM, and 53 nM for H1975 (T790M/L858R), PC-9 (ex19del), Calu 3 (WT), and NCI-H2073 (WT), respectively. [1]
In vivo	In both C/L858R and C/L+T mice, AZ5104 (5 mg/kg/d, p.o.) induces significant and sustained tumor regression. [1]
Kinase Assay	Recombinant Kinase assays: Kinase assays are performed using peptide or protein substrates in a filter-binding radioactive ATP transferase assay for protein kinases, or lipid substrates and HTRF assay for lipid kinase.

Molecular Weight	485.58

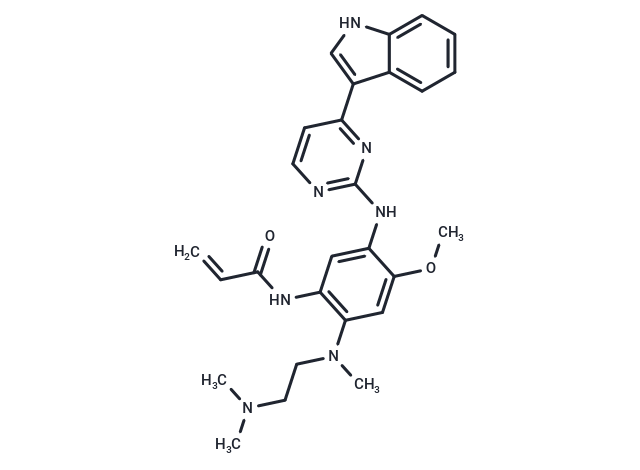

Formula	C27H31N7O2
CAS No.	1421373-98-9

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

Ethanol: 16 mg/mL(33 mM)

H2O: < 1 mg/mL (insoluble or slightly soluble)

DMSO: 90 mg/mL (185.3 mM)

References and Literature

1. Cross DA, et al. Cancer Discov. 2014, 4(9), 1046-1061.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Tyrosine Kinase Inhibitor Library Membrane Protein-targeted Compound Library Kinase Inhibitor Library Cysteine Covalent Library Bioactive Compounds Library Max Immunology/Inflammation Compound Library Anti-Colorectal Cancer Compound Library Anti-Liver Cancer Compound Library Anti-Breast Cancer Compound Library

Related Products

Related compounds with same targets

EAI045 Ligustroside EGFR/BRAFV600E-IN-3 Patritumab JCN037 Tyrphostin AG 112 EGFR mutant-IN-1 PD153035 hydrochloride

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
