ML221

Catalog No. T4390 CAS 877636-42-5

ML221 is a potent apelin /APJ functional antagonist, inhibiting apelin-13-mediated activation of APJ, with IC50s of 0.70 μM in the cAMP assay, and 1.75 μM in the β-arrestin assay, and EC80 of 10 nM in both assays.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

ML221, CAS 877636-42-5

Pack Size	Availability	Price/USD
5 mg	In stock	$ 50.00
10 mg	In stock	$ 78.00
25 mg	In stock	$ 169.00
50 mg	In stock	$ 257.00
100 mg	In stock	$ 468.00
1 mL * 10 mM (in DMSO)	In stock	$ 50.00

Bulk Inquiry

Select Batch

Purity: 97.74%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	ML221 is a potent apelin /APJ functional antagonist, inhibiting apelin-13-mediated activation of APJ, with IC50s of 0.70 μM in the cAMP assay, and 1.75 μM in the β-arrestin assay, and EC80 of 10 nM in both assays.
Targets&IC50	APJ:1.75 μM
In vitro	ML221 is a potent apelin/APJ functional antagonist, inhibiting apelin-13-mediated activation of APJ, with IC50s of 0.70 μM in the cAMP assay, and 1.75 μM in the β-arrestin assay, and EC80 of 10 nM in both assays. ML221 is >37-fold selective over the closely related angiotensin II type 1 (AT1) receptor (IC50, >79 μM) in cells. ML221 displays limited cross reactivity against a range of GPCRs except the κ-opioid and benzodiazepinone receptors (<50/<70%I at 10 μM)
Cell Research	ML221 is dissolved in DMSO. Cells (angiotensin II receptor-like 1 (AGTRL-1) cell line) are seeded at 1000 cell/well (1536 plate) in 4 μL and grown overnight (16-18 h) at 37°C, 5% CO2, 100% humidity, then 60 nL of either DMSO control or 2 mM stock test compounds (ML221, etc.) in DMSO are transferred to each well, followed by 2 μL of 30 nM Apelin-13 to negative control and test compound wells, and 2 μL of assay media (F12 nutrient mix HAMs supplemented with 10% hi-FBS, 1× penicillin/streptomycin) to positive control wells. This yields a final concentration of test compound (ML221, etc.) of 20 μM and 1% final DMSO. Assay is incubated for 90 min at room temperature, and then developed with 3 μL of detection reagent for 60 min and luminescence read on a ViewLux. They are for reference only.

Molecular Weight	385.35

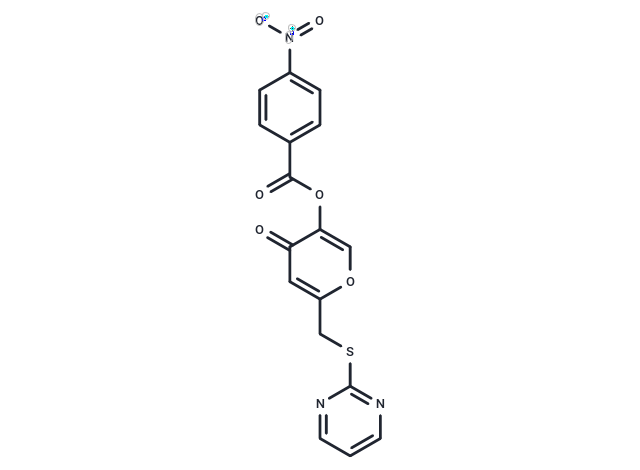

Formula	C17H11N3O6S
CAS No.	877636-42-5

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 3.9 mg/mL(10 mM)

References and Literature

1. Maloney PR, etal. Discovery of 4-oxo-6-((pyrimidin-2-ylthio)methyl)-4H-pyran-3-yl 4-nitrobenzoate (ML221) as a functional antagonist of the apelin (APJ) receptor. Bioorg Med Chem Lett. 2012 Nov 1;22(21):6656-60.

Citations

1. Xiong M, Chen H, Fan Y, et al.Tubular Elabela-APJ axis attenuates ischemia-reperfusion induced acute kidney injury and the following AKI-CKD transition by protecting renal microcirculation.Theranostics.2023, 13(10): 3387. 2. Ye L, Huang Y, Liu X, et al.Apelin/APJ system protects placental trophoblasts from hypoxia-induced oxidative stress through activating PI3K/Akt signaling pathway in preeclampsia.Free Radical Biology and Medicine.2023

Related compound libraries

This product is contained In the following compound libraries：

GPCR Compound Library Inhibitor Library Bioactive Compounds Library Max NO PAINS Compound Library Endocrinology-Hormone Compound Library Bioactive Compound Library

Related Products

Related compounds with same targets

Azelaprag ELA-14(human) acetate BMS-986224 [Pyr1]-Apelin-13 (2R,3S)-Azelaprag ELA-11 (human) acetate(1784687-32-6 free base) Apelin-12 acetate ALX 40-4C acetate

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
