RG13022

Catalog No. T3545 CAS 136831-48-6

Synonyms: RG 13022, Tyrphostin RG13022

RG13022 (Tyrphostin RG13022) is a tyrosine kinase inhibitor; inhibits the autophosphorylation reaction of the EGF receptor (IC50: 4 μM).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

RG13022, CAS 136831-48-6

Pack Size	Availability	Price/USD
2 mg	In stock	$ 39.00
5 mg	In stock	$ 55.00
10 mg	In stock	$ 80.00
25 mg	In stock	$ 189.00
50 mg	In stock	$ 320.00
100 mg	In stock	$ 506.00
1 mL * 10 mM (in DMSO)	In stock	$ 58.00

Bulk Inquiry

Select Batch

Purity: 98.38%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	RG13022 (Tyrphostin RG13022) is a tyrosine kinase inhibitor; inhibits the autophosphorylation reaction of the EGF receptor (IC50: 4 μM).
Targets&IC50	EGF:4 μM
In vitro	RG13022 suppresses EGF-stimulated cancer cell proliferation. In a cell-free reaction, RG13022 inhibits the autophosphorylation reaction of the EGF receptor in immunoprecipitates (IC50: 4 μM). RG13022 inhibits colony formation (IC50: 1 μM) and DNA synthesis (IC50: 3 μM) by HER 14 cells (stimulated by 50 ng/mL EGF), in a dose-dependent manner. RG-13022 inhibits not only EGF-induced growth but also growth stimulated by insulin, insulin-like growth factor I, insulin-like growth factor II, or transforming growth factor alpha. RG-13022 also totally blocks estrogen-stimulated phosphorylation of the EGF receptor, as well as estrogen-induced cell proliferation, suggesting that functioning TK pathways are required for estrogen action.
In vivo	RG13022 suppresses tumor growth in nude mice. It also increases the lifespan of these tumor-bearing nude mice.
Cell Research	40 mM stock solutions of RG13022 is made in 100% DMSO and diluted with the culture medium before addition to the cells. MH-85 cells and HER 14 cells are plated in culture medium in the presence or absence of increasing concentrations of RG-13022 or RG-14620 for 10 days. At the end of culture, the cells are fixed with 4% (v/v) formaldehyde and stained with hematoxylin. Numbers of colonies including more than 20 cells in each well are counted under the microscope[1].

Synonyms	RG 13022, Tyrphostin RG13022
Molecular Weight	266.29

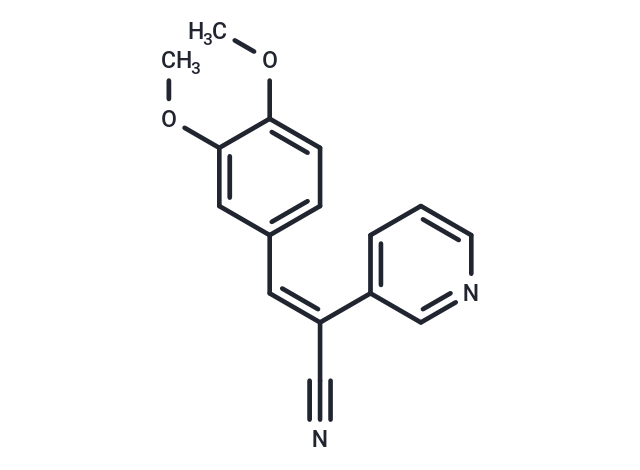

Formula	C16H14N2O2
CAS No.	136831-48-6

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 50 mg/mL (187.76 mM)

References and Literature

1. Yoneda T, et al. The antiproliferative effects of tyrosine kinase inhibitors tyrphostins on a human squamous cell carcinoma in vitro and in nude mice. Cancer Res. 1991 Aug 15;51(16):4430-5. 2. Reddy KB, et al. Inhibition of breast cancer cell growth in vitro by a tyrosine kinase inhibitor. Cancer Res. 1992 Jul 1;52(13):3636-41. 3. Nguyen D J M, Theodoropoulos G, Li Y Y, et al. Targeting the kynurenine pathway for the treatment of cisplatin-resistant lung cancer[J]. Molecular Cancer Research. 2020, 18(1): 105-117.
