LDN-193189 2HCl

Catalog No. T35348 CAS 1435934-00-1

Synonyms: LDN-193189 2HCl, DM-3189 2HCl

LDN-193189 2HCl (DM-3189 2HCl) is a selective BMP signaling inhibitor that inhibits ALK1,ALK2,ALK3 and ALK6, showing IC50s of 0.8 nM, 0.8 nM, 5.3 nM, and 16.7 nM, respectively, in kinase assays.LDN-193189 2HCl inhibited the transcriptional activity of BMP type I receptors in C2C12 cells, with IC50s of 5 nM and 30 nM, respectively. LDN-193189 2HCl inhibited the transcriptional activity of BMP type I receptors ALK2 and ALK3 in C2C12 cells, with IC50s of 5 nM and 30 nM, respectively, and was 200-fold more selective for BMP than for TGF-β.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

LDN-193189 2HCl, CAS 1435934-00-1

Pack Size	Availability	Price/USD
5 mg	In stock	$ 67.00
10 mg	In stock	$ 87.00
25 mg	In stock	$ 148.00
50 mg	In stock	$ 237.00
100 mg	In stock	$ 353.00
500 mg	In stock	$ 837.00
1 mL * 10 mM (in DMSO)	In stock	$ 80.00

Bulk Inquiry

Select Batch

Purity: 99.78%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	LDN-193189 2HCl (DM-3189 2HCl) is a selective BMP signaling inhibitor that inhibits ALK1,ALK2,ALK3 and ALK6, showing IC50s of 0.8 nM, 0.8 nM, 5.3 nM, and 16.7 nM, respectively, in kinase assays.LDN-193189 2HCl inhibited the transcriptional activity of BMP type I receptors in C2C12 cells, with IC50s of 5 nM and 30 nM, respectively. LDN-193189 2HCl inhibited the transcriptional activity of BMP type I receptors ALK2 and ALK3 in C2C12 cells, with IC50s of 5 nM and 30 nM, respectively, and was 200-fold more selective for BMP than for TGF-β.
Targets&IC50	ALK1 (cell-free assay):0.8 nM, ALK2 (cell-free assay):0.8 nM, ALK3 (cell-free assay):5.3 nM, ALK6 (cell-free assay):16.7 nM
In vitro	LDN193189 can effectively inhibit BMP4-mediated activation of Smad1, Smad5, and Smad8, with IC50 of 5 nM. It can also effectively inhibit the transcriptional activity of BMP type I receptors ALK2 and ALK3, with IC50 of 5 nM and 30 nM, respectively. LDN193189 also has an inhibitory effect on transcriptional activation induced by persistently activated ALK2R206H or ALK2Q207D mutant proteins.[1] A recent study showed that LDN-193189 blocks the production of oxidative free radicals induced by oxidized LDL in human arterial endothelial cells.[4]
In vivo	LDN-193189 (3 mg/kg, intraperitoneal injection; birth in conditional caALK2) caused weak calcification of the left tibia and fibula, which was visible on day 13 and blocked on day 15 without causing weight loss or growth retardation, spontaneous fractures, decreased bone density, or abnormal behavior.[1] LDN193189 forms curved Zebrafish embryos by inhibiting the signal pathway induced by bone morphogenetic protein (BMP) 6 and has no effect on vascular development.[2] In mice with PCa-118b tumors, LDN-193189 treatment slowed down tumor growth and reduced bone formation in the tumor.[3] In LDLR -/- mice, LDN-193189 inhibited the development of arterial atherosclerosis. In addition, LDN-193189 has inhibitory effects on vascular inflammation, osteogenic activity, and calcification.[4]

Synonyms	LDN-193189 2HCl, DM-3189 2HCl
Molecular Weight	479.4

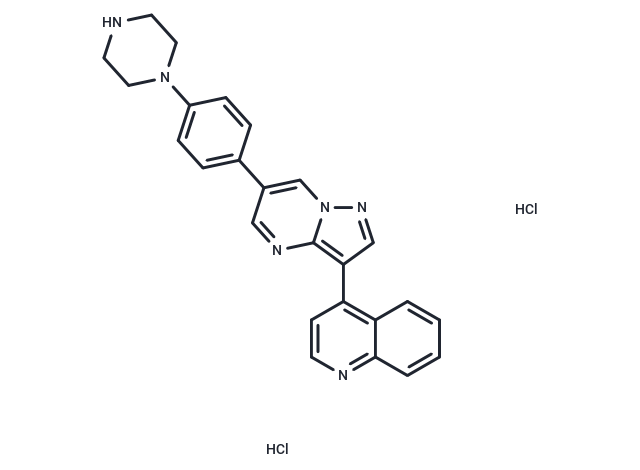

Formula	C25H24Cl2N6
CAS No.	1435934-00-1

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 9.0 mg/mL (18.8 mM)

H2O: 45.0 mg/mL (93.9 mM)

References and Literature

1. Yu PB, et al. BMP type I receptor inhibition reduces heterotopic [corrected] ossification [published correction appears in Nat Med. Nat Med. 2008;14(12):1363-1369. 2. Cannon JE, et al. Intersegmental vessel formation in zebrafish: requirement for VEGF but not BMP signalling revealed by selective and non-selective BMP antagonists. Br J Pharmacol. 2010;161(1):140-149. 3. Lee YC, et al. BMP4 promotes prostate tumor growth in bone through osteogenesis. Cancer Res. 2011;71(15):5194-520 4. Derwall M, et al. Inhibition of bone morphogenetic protein signaling reduces vascular calcification and atherosclerosis. Arterioscler Thromb Vasc Biol. 2012;32(3):613-622. 5. Sanvitale CE, et al. A new class of small molecule inhibitor of BMP signaling. PLoS One. 2013;8(4):e62721.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Membrane Protein-targeted Compound Library TGF-beta/Smad Compound Library Tyrosine Kinase Inhibitor Library Kinase Inhibitor Library Bioactive Compounds Library Max Bioactive Compound Library Immunology/Inflammation Compound Library

Related Products

Related compounds with same targets

R-268712 BIBF0775 ALK-IN-5 (-)-Cevimeline hydrochloride hemihydrate Entrectinib LDN-193189 HCl F-1 CEP-28122

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.
