XMD17-109

🥰Excellent
Catalog No. T1842Cas No. 1435488-37-1
Alias XMD17 109, ERK5-IN-1

XMD17-109 (ERK5-IN-1) is a new selective ERK-5 inhibitor (EC50: 4.2 uM, HEK293 cells).

XMD17-109

XMD17-109

🥰Excellent
Purity: 99.75%
Catalog No. T1842Alias XMD17 109, ERK5-IN-1Cas No. 1435488-37-1
XMD17-109 (ERK5-IN-1) is a new selective ERK-5 inhibitor (EC50: 4.2 uM, HEK293 cells).
Pack SizePriceAvailabilityQuantity
1 mg$35In Stock
2 mg$48In Stock
5 mg$79In Stock
10 mg$147In Stock
25 mg$233In Stock
50 mg$377In Stock
100 mg$567In Stock
1 mL x 10 mM (in DMSO)$112In Stock
Bulk & Custom
Add to Cart
Questions
View More

Related Compound Libraries of "XMD17-109"

Select Batch
Purity:99.75%
Contact us for more batch information
Resource Download
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Product Introduction

Bioactivity
Description
XMD17-109 (ERK5-IN-1) is a new selective ERK-5 inhibitor (EC50: 4.2 uM, HEK293 cells).
Targets&IC50
ERK5:162 nM(EC50)
In vivo
At the cellular level, ERK5-IN-1 inhibits endothelial growth factor-induced ERK5 autophosphorylation (EC50: 90 nM). It also effectively inhibits the biochemical properties of ERK5 (IC50: 162 nM).
Cell Research
HeLa cells are maintained in DMEM supplemented with 10% FBS, 2 mM?l-glutamine, 50 U/mL penicillin G, and 50 μg/mL streptomycin. Before use HeLa cells are serum starved for 16 h in DMEM supplemented with 2 mM?l-glutamine, 50 U/mL penicillin G, and 50 μg/mL streptomycin. HeLa cells are then incubated with ERK5-IN-1 at the indicated concentrations for 1 h prior to stimulation with 0.5mol/Lsorbitol for 30 min. Cells are lysed in Triton lysis buffer (50 mM Tris-HCl, pH 7.5, 1 mM EGTA, 1 mM EDTA, 1 mM sodium orthovanadate, 50 mM sodium fluoride, 1 mM sodium pyrophosphate, 0.27mol/Lsucrose, 1 μM microcystin-LR, 1% (v/v) Triton X-100, 0.1% (v/v) 2-mercaptoethanol) and 20 μg of protein loaded per well. Samples are run on 8% polyacrylamide gels using standard methods. Proteins are transferred onto nitrocellulose membranes and specific proteins detected by immunoblotting.
AliasXMD17 109, ERK5-IN-1
Chemical Properties
Molecular Weight638.8
FormulaC36H46N8O3
Cas No.1435488-37-1

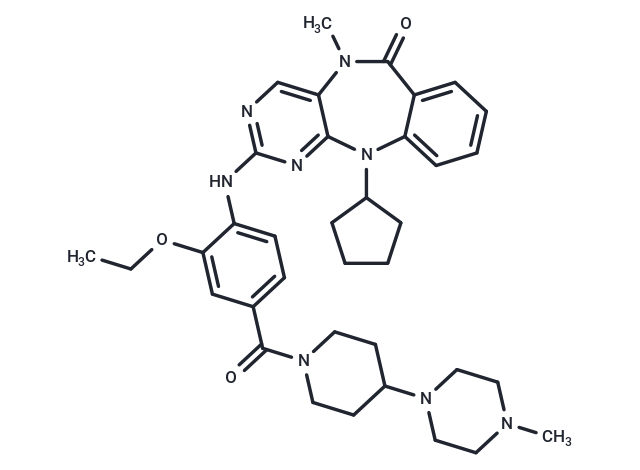

SmilesCCOc1cc(ccc1Nc1ncc2N(C)C(=O)c3ccccc3N(C3CCCC3)c2n1)C(=O)N1CCC(CC1)N1CCN(C)CC1
Relative Density.no data available
Storage & Solubility Information
StoragePowder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice.
Solubility Information
DMSO: 93 mg/mL (145.6 mM)
Ethanol: 93 mg/mL (145.6 mM)
H2O: < 1 mg/mL (insoluble or slightly soluble)
Solution Preparation Table
DMSO/Ethanol
1mg5mg10mg50mg
1 mM1.5654 mL7.8272 mL15.6544 mL78.2718 mL
5 mM0.3131 mL1.5654 mL3.1309 mL15.6544 mL
10 mM0.1565 mL0.7827 mL1.5654 mL7.8272 mL
20 mM0.0783 mL0.3914 mL0.7827 mL3.9136 mL
50 mM0.0313 mL0.1565 mL0.3131 mL1.5654 mL
100 mM0.0157 mL0.0783 mL0.1565 mL0.7827 mL

Calculator

  • Molarity Calculator
  • Dilution Calculator
  • Reconstitution Calculator
  • Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the mother liquor preparation method and in vivo formula preparation method:
TargetMol | Animal experimentsFor example, your dosage is 10 mg/kg Each animal weighs 20 g, and the dosage volume is 100 μL . TargetMol | Animal experiments A total of 10 animals were administered, and the formula you used is 5% TargetMol | reagent DMSO+30% PEG300+5% Tween 80+60% ddH2O. So your working solution concentration is 2 mg/mL。
Mother liquor preparation method: 2 mg of drug dissolved in 50 μL DMSOTargetMol | reagent (mother liquor concentration of 40 mg/mL), if you need to configure a concentration that exceeds the solubility of the product, please contact us first.
Preparation method for in vivo formula: Take 50 μL DMSOTargetMol | reagent main solution, add 300 μLPEG300TargetMol | reagent mix well and clarify, then add 50 more μL Tween 80, mix well and clarify, then add 600 more μLddH2OTargetMol | reagent mix well and clarify
For Reference Only. Please develop an appropriate dissolution method based on your laboratory animals and route of administration.
1 Enter information below:
mg/kg
g
μL
2 Enter the in vivo formulation:
% DMSO
%
%Tween 80
%ddH2O

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
