FPS-ZM1

Catalog No. T3259 CAS 945714-67-0

FPS-ZM1 is a high-affinity RAGE specific inhibitor that blocks Aβ binding to the V domain of RAGE.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

FPS-ZM1, CAS 945714-67-0

Pack Size	Availability	Price/USD
5 mg	In stock	$ 43.00
10 mg	In stock	$ 52.00
25 mg	In stock	$ 93.00
50 mg	In stock	$ 150.00
100 mg	In stock	$ 231.00
200 mg	In stock	$ 369.00
500 mg	In stock	$ 622.00
1 mL * 10 mM (in DMSO)	In stock	$ 48.00

Bulk Inquiry

Select Batch

Purity: 99.3%

Purity: 98.39%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	FPS-ZM1 is a high-affinity RAGE specific inhibitor that blocks Aβ binding to the V domain of RAGE.
Targets&IC50	RAGE:25 nM. (Ki)
In vitro	FPS-ZM1 blocks Aβ binding to the V domain of RAGE and inhibited Aβ40- and Aβ42-induced cellular stress in RAGE-expressing cells in vitro. It blocks binding of other ligands to RAGE as well, such as S100B, AGE, and HMGB1, which have been suggested to contribute to RAGE-mediated long-term tissue damage in models of diabetes, immune/inflammatory disorders, and AD[1].
In vivo	FPS-ZM1 is nontoxic to mice and readily crossed the blood-brain barrier (BBB).It effectively controls progression of an Aβ-mediated brain disorder and the related neurovascular and cognitive dysfunction in 17-month-old APPsw/0 mice with fully developed Aβ and amyloid pathology by blocking RAGE actions at the BBB and in brain. Also, FPS-ZM1 blocks RAGE-dependent BACE1 expression and activity in brain of 17-month-old APPsw/0 mice[1].
Kinase Assay	Human sRAGE is immobilized (10 μg/mL) overnight at 4°C in 96-well microtiter plates and blocked with 3% bovine serum albumin. 125I-labeled Aβ40, HMGB1, or S100B at 5 nM in the absence and presence of various concentrations of FPS2 or FPS-ZM1 (10 to 1,000 nM) is added to the wells containing immobilized sRAGE and incubated for 1 hour at room temperature in PBS. Wells are washed with cold PBS to remove unbound radiolabeled ligands, and the radioactivity is analyzed[1].
Cell Research	CHO cells are treated for 72 hours with different concentrations of inhibitors ranging from 10 nM to 10 μM. The cellular toxicity was determined using the WST-8 Assay Kit. (Only for Reference)

Molecular Weight	327.85

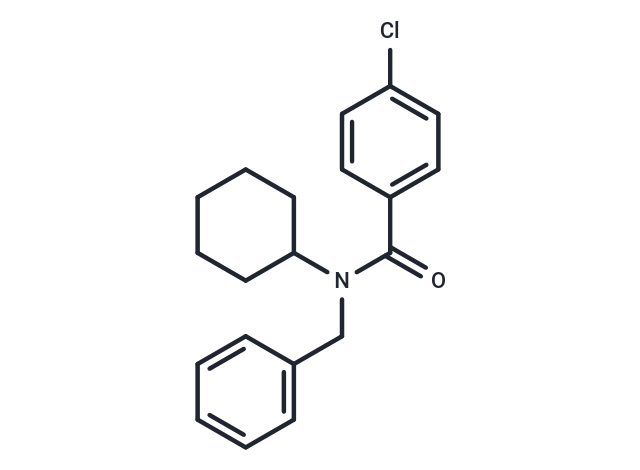

Formula	C20H22ClNO
CAS No.	945714-67-0

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 198.3 mM

References and Literature

1. Deane R, et al. J Clin Invest. 2012, 122(4):1377-1392. 2. He C, Sun S, Zhang Y, et al. The role of irreversible electroporation in promoting M1 macrophage polarization via regulating the HMGB1-RAGE-MAPK axis in pancreatic cancer[J]. OncoImmunology. 2021, 10(1): 1897295.

Citations

1. He C, Sun S, Zhang Y, et al. The role of irreversible electroporation in promoting M1 macrophage polarization via regulating the HMGB1-RAGE-MAPK axis in pancreatic cancer. OncoImmunology. 2021 Mar 11;10(1):1897295. doi: 10.1080/2162402X.2021.1897295.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Anti-Neurodegenerative Disease Compound Library Bioactive Compounds Library Max Stem Cell Differentiation Compound Library NO PAINS Compound Library Neuronal Signaling Compound Library CNS-Penetrant Compound Library Target-Focused Phenotypic Screening Library Anti-Alzheimer's Disease Compound Library Bioactive Compound Library

Related Products

Related compounds with same targets

PE859 γ-Secretase-IN-1 Isorosmanol CGP52411 ALZ-801 δ-secretase inhibitor 11 Qingyangshengenin B 7-(4-Hydroxyphenyl)-1-phenyl-4-hepten-3-one

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
