GW788388

Catalog No. T1800 CAS 452342-67-5

Synonyms: GW 788388

GW788388 is a potent and selective inhibitor of ALK5, also inhibits TGF-(beta) type II receptor and activin type II receptor activities.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

GW788388, CAS 452342-67-5

Pack Size	Availability	Price/USD
5 mg	In stock	$ 58.00
10 mg	In stock	$ 96.00
25 mg	In stock	$ 172.00
50 mg	In stock	$ 281.00
100 mg	In stock	$ 413.00
500 mg	In stock	$ 963.00
1 mL * 10 mM (in DMSO)	In stock	$ 59.00

Bulk Inquiry

Select Batch

Purity: 98.79%

Purity: 98%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	GW788388 is a potent and selective inhibitor of ALK5, also inhibits TGF-(beta) type II receptor and activin type II receptor activities.
Targets&IC50	ALK5:18 nM
In vitro	In a model of kidney fibrosis induced by puromycin aminonucleoside, GW788388 (10 mg/kg) was shown to induce the expression of collagen A1 mRNA. In rodents with advanced diabetic nephropathy, GW788388 reduced fibrotic responses by diminishing TGF-β signaling. Furthermore, in a mouse model of myocardial infarction, treatment with GW788388 significantly inhibited contractile function, reduced cardiac hypertrophy, and decreased levels of activated Smad2 and α-SMA.
In vivo	GW788388 effectively inhibits ALK5, ALK4, ALK7, and TGF-β-regulated growth. In cellular assays (IC50=93 nM), it demonstrates an inhibition of TGF-β-induced Smad activation and suppresses the expression of target genes.
Kinase Assay	ALK5 Fluorescence Polarization Binding Assay: GW788388 binding to ALK5 is tested on purified recombinant GST?ALK5 (residues 198-503). Displacement of rhodamine green fluorescently labeled ATP competitive inhibitor by different concentrations of GW788388 is used to calculate a binding pIC50. GST?ALK5 is added to a buffer containing 62.5 mM N-(2-hydroxyethyl)piperazine-N'-2-ethanesulfonic acid (Hepes), pH 7.5, 1 mM dithiothreitol (DTT), 12.5 mM MgCl2, 1.25 mM 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonic acid (CHAPS), and 1 nM rhodamine green-labeled ligand so that the final ALK5 concentration is 10 nM based on active-site titration of the enzyme. The enzyme/ligand reagent (40 μL) is added to 384-well assay plates containing 1 μL of different concentrations of GW788388. The plates are read immediately on a LJL Acquest fluorescence reader with excitation, emission, and dichroic filters of 485, 530, and 505 nm, respectively. The fluorescence polarization for each well is calculated by the Acquest and is then imported into curve-fitting software for construction of concentration?response curves.
Cell Research	Cell viability/proliferation assays are done according to the manufactures instructions (CellTiter 96 Aqueous One Solution Cell Proliferation Assay). Viability and proliferation are measured after 72 hours GW788388 treatment in the presence or absence of TGF-β.(Only for Reference)

Synonyms	GW 788388
Molecular Weight	425.48

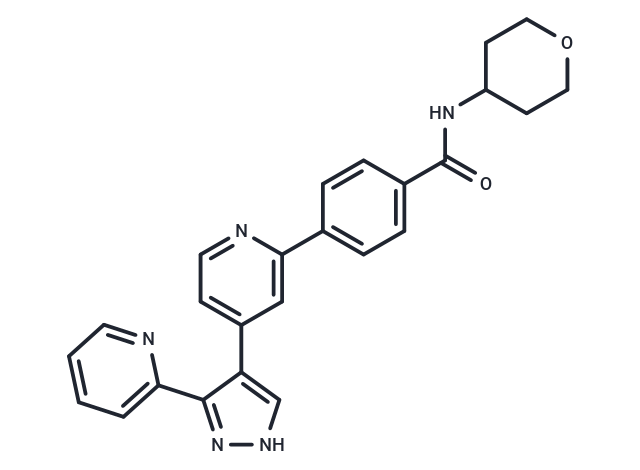

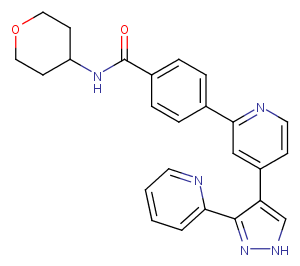

Formula	C25H23N5O2
CAS No.	452342-67-5

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 42.6 mg/mL (100 mM)

References and Literature

1. Gellibert F, et al. J Med Chem. 2006, 49(7), 2210-2221. 2. Petersen M, et al. Kidney Int, 2008, 73(6), 705-715. 3. Tan SM, et al. Am J Physiol Heart Circ Physiol, 2010, 298(5), H1415-1425. 4. Lagares D, et al. Arthritis Rheum, 2010, 62(3), 878-889.

Related compound libraries

This product is contained In the following compound libraries：

Kinase Inhibitor Library TGF-beta/Smad Compound Library Tyrosine Kinase Inhibitor Library Inhibitor Library Covalent Inhibitor Library Bioactive Compounds Library Max Anti-Ovarian Cancer Compound Library Anti-Obesity Compound Library Anti-Cardiovascular Disease Compound Library Anti-Colorectal Cancer Compound Library

Related Products

Related compounds with same targets

AZ 12799734 CEP-28122 mesylate salt (1022958-60-6 free base) GSK1838705A Ceritinib dihydrochloride F-1 OD36 Conteltinib HG-14-10-04

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
