NS5806

Catalog No. T16348Cas No. 426834-69-7
Alias NS-5806

NS5806 is an effective potassium current activator. NS5806 slows KV4.3 and KV4.2 current decay in channel complexes containing KChIP2. NS5806 enhances KV4.3/KChIP2 peak current amplitudes (EC50: 5.3 μM).

NS5806

NS5806

Purity: 97.95%
Catalog No. T16348Alias NS-5806Cas No. 426834-69-7
NS5806 is an effective potassium current activator. NS5806 slows KV4.3 and KV4.2 current decay in channel complexes containing KChIP2. NS5806 enhances KV4.3/KChIP2 peak current amplitudes (EC50: 5.3 μM).
Pack SizePriceAvailabilityQuantity
1 mg$39In Stock
5 mg$97In Stock
10 mg$155In Stock
25 mg$262In Stock
50 mg$389In Stock
100 mg$573In Stock
1 mL x 10 mM (in DMSO)$123In Stock
Bulk & Custom
Add to Cart
Questions
View More

Related Compound Libraries of "NS5806"

Select Batch
Purity:97.95%
Contact us for more batch information
Resource Download
All TargetMol products are for research purposes only and cannot be used for human consumption. We do not provide products or services to individuals. Please comply with the intended use and do not use TargetMol products for any other purpose.

Product Introduction

Bioactivity
Description
NS5806 is an effective potassium current activator. NS5806 slows KV4.3 and KV4.2 current decay in channel complexes containing KChIP2. NS5806 enhances KV4.3/KChIP2 peak current amplitudes (EC50: 5.3 μM).
Targets&IC50
Kv4.3/KChIP2:5.3 μM
In vitro
NS5806 activates canine transient outward potassium current (Ito) (IC50: 40.7 nM and an EC50 of 1.6 nM for inhibition and stimulation on the rabbit, respectively). NS5806 (10-100 nM) has concentration-dependent effects on ventricular and atrial Ito. NS5806 (10 μM) induces a 65% increase of KV4.3/KChIP2/DPP6 peak current amplitudes concentration-dependently and the time course of inactivation (τ) is slowed with an EC50 value of 25.4 μM in CHO-K1 cells[1][2].
AliasNS-5806
Chemical Properties
Molecular Weight574.07

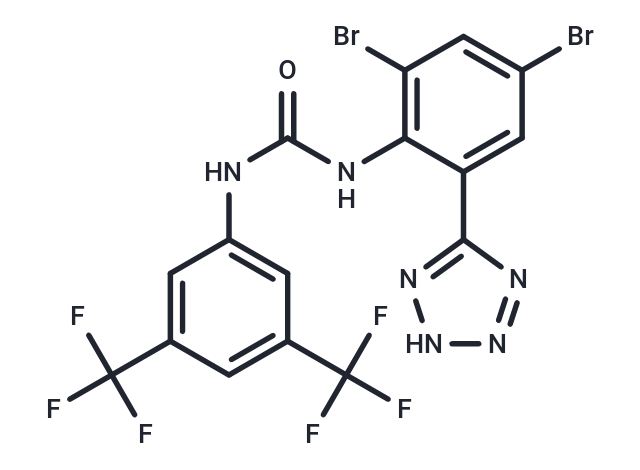

FormulaC16H8Br2F6N6O
Cas No.426834-69-7
Storage & Solubility Information
StoragePowder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice.
Solubility Information
DMSO: 250 mg/mL (435.49 mM), Sonication is recommended.
Solution Preparation Table
DMSO
1mg5mg10mg50mg
1 mM1.7419 mL8.7097 mL17.4195 mL87.0974 mL
5 mM0.3484 mL1.7419 mL3.4839 mL17.4195 mL
10 mM0.1742 mL0.8710 mL1.7419 mL8.7097 mL
20 mM0.0871 mL0.4355 mL0.8710 mL4.3549 mL
50 mM0.0348 mL0.1742 mL0.3484 mL1.7419 mL
100 mM0.0174 mL0.0871 mL0.1742 mL0.8710 mL

Calculator

  • Molarity Calculator
  • Dilution Calculator
  • Reconstitution Calculator
  • Molecular Weight Calculator

In Vivo Formulation Calculator (Clear solution)

Please enter your animal experiment information in the following box and click Calculate to obtain the mother liquor preparation method and in vivo formula preparation method:
TargetMol | Animal experimentsFor example, your dosage is 10 mg/kg Each animal weighs 20 g, and the dosage volume is 100 μL . TargetMol | Animal experiments A total of 10 animals were administered, and the formula you used is 5% TargetMol | reagent DMSO+30% PEG300+5% Tween 80+60% ddH2O. So your working solution concentration is 2 mg/mL。
Mother liquor preparation method: 2 mg of drug dissolved in 50 μL DMSOTargetMol | reagent (mother liquor concentration of 40 mg/mL), if you need to configure a concentration that exceeds the solubility of the product, please contact us first.
Preparation method for in vivo formula: Take 50 μL DMSOTargetMol | reagent main solution, add 300 μLPEG300TargetMol | reagent mix well and clarify, then add 50 more μL Tween 80, mix well and clarify, then add 600 more μLddH2OTargetMol | reagent mix well and clarify
For Reference Only. Please develop an appropriate dissolution method based on your laboratory animals and route of administration.
1 Enter information below:
mg/kg
g
μL
2 Enter the in vivo formulation:
% DMSO
%
%Tween 80
%ddH2O

Dose Conversion

You can also refer to dose conversion for different animals. More Dose Conversion

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc
