GW2580

Catalog No. T2659   CAS 870483-87-7
Synonyms: GW 2580, SC-203877

GW2580 (SC-203877) is a specific, oral-bioavailable CSF-1R inhibitor for c-FMS.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

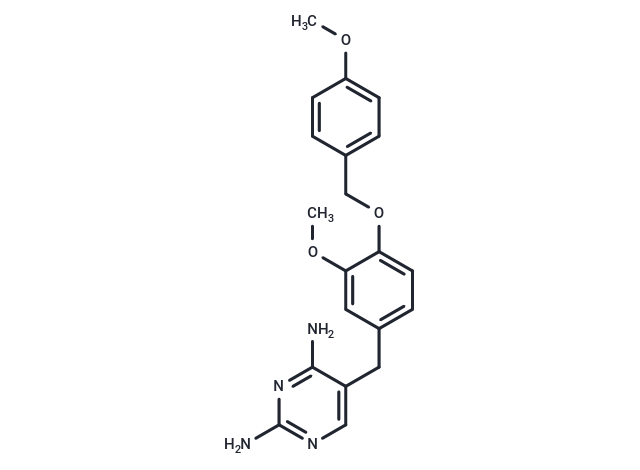

GW2580 Chemical Structure
GW2580, CAS 870483-87-7
Pack Size Availability Price/USD Quantity
5 mg In stock $ 43.00
10 mg In stock $ 63.00
50 mg In stock $ 79.00
100 mg In stock $ 98.00
200 mg In stock $ 140.00
500 mg In stock $ 286.00
1 mL * 10 mM (in DMSO) In stock $ 50.00
Bulk Inquiry
Get quote
Select Batch
Purity: 100%
Purity: 99.48%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description GW2580 (SC-203877) is a specific, oral-bioavailable CSF-1R inhibitor for c-FMS.
Targets&IC50 c-Fms:30 nM
Kinase Assay cFMS tyrosine kinase assay: The enzyme is activated by autophosphorylation by incubating 10 μM enzyme, 100 μM ATP, and 5 mM MgCl2 in 50 mM Tris HCL for 90 min at room temperature. Enzyme reactions are performed in a volume of 45 μL, by using round-bottom polystyrene 96-well plates on a Biomek 2000. Compound in 1 μL DMSO or DMSO alone are added to each well containing 30 μL of a 1.5× substrate reaction mix containing 50 mM Mops (3-[N-Morpholino]propanesulfonic acid), pH 7.5, 15 mM MgCl2, 6 μM peptide substrate, biotin-EAIYAPFAKKK-NH2 7.5 mM DTT, 75 mM NaCl, 10 μM ATP, and 0.5 μCi (1 Ci = 37 GBq) [33P-γ] ATP per assay. The reaction is initiated by the addition of 15 μL of diluted enzyme solution, resulting in a final enzyme concentration 20 nM. EDTA is added to control wells for determination of background. The reaction is allowed to proceed for 40 min and stopped by the addition of an equal volume of 0.5% phosphoric acid, and 75 μL is transferred to a 96-well phosphocellulose filter plate that has been prewet with 100 μL of 0.5% phosphoric acid. The plate is filtered on a Millipore filter-plate vacuum manifold and washed three times with the phosphoric acid solution, followed by the addition of 40 μL of scintillation solution. The plates are sealed and counted in a Packard Topcount NXT scintillation counter.
Cell Research One day before the start of the cell growth assay the cells are spun down and placed in a depleted media at 2× 106 cells per ml for 24 h. Depleted medium for M-NSF60 cells lacks MCSF. The next day, GW2580 at 10 mM in DMSO is diluted to 20 μM and 0.2% DMSO in medium containing 10% serum and serially diluted to yield a 10-point concentration curve. The M-NFS-60 cells are resuspended in medium at 0.5× 106 cells/mL with 10% serum and 20 ng/mL mouse MCSF. Cells (50 μL) are added to each well containing inhibitor (50 μL), and, 3 days later, 10 μL of WST-1 reagent is added to each well. After a 4-h incubation, the absorbance is measured at 440 nm and growth calculated as the difference between wells with full medium and wells with depleted medium.(Only for Reference)
Synonyms GW 2580, SC-203877
Molecular Weight 366.41
Formula C20H22N4O3
CAS No. 870483-87-7

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: < 1 mg/mL (insoluble or slightly soluble)

DMSO: 45 mg/mL (122.8 mM)

Ethanol: < 1 mg/mL (insoluble or slightly soluble)

TargetMolReferences and Literature

1. Conway JG, et al. Proc Natl Acad Sci U S A, 2005, 102(44), 16078-16083. 2. Priceman SJ, et al. Blood, 2010, 115(7), 1461-1471 3. Conway JG, et al. J Pharmacol Exp Ther, 2008, 326(1), 41-50.

Related compound libraries

This product is contained In the following compound libraries:
Tyrosine Kinase Inhibitor Library Highly Selective Inhibitor Library Stem Cell Differentiation Compound Library Bioactive Compounds Library Max Inhibitor Library NO PAINS Compound Library Orally Active Compound Library Kinase Inhibitor Library Bioactive Compound Library Immunology/Inflammation Compound Library

Related Products

Related compounds with same targets
Cerdulatinib hydrochloride c-Fms-IN-2 Anti-Mouse GM-CSF Antibody (MP1-22E9) PF 477736 Onatasertib cFMS Receptor Inhibitor II Ki20227 Pimicotinib

TargetMolDose Conversion

You can also refer to dose conversion for different animals. More

TargetMol In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Dosage
mg/kg
Average weight of animals
g
Dosing volume per animal
ul
Number of animals
Step Two: Enter the in vivo formulation
% DMSO
%
% Tween 80
% ddH2O
Calculate Reset

TargetMolCalculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator
=
X
X

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

X
=
X

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

=
/

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.

bottom

Tech Support

Please see Inhibitor Handling Instructions for more frequently ask questions. Topics include: how to prepare stock solutions, how to store products, and cautions on cell-based assays & animal experiments, etc.

Keywords

GW2580 870483-87-7 Tyrosine Kinase/Adaptors c-Fms SC203877 inhibit SC 203877 GW-2580 CSF1R GW 2580 CSF-1 receptor Inhibitor SC-203877 CSF-1R colony stimulating factor 1 receptor inhibitor
