E7820

Catalog No. T4435 CAS 289483-69-8

Synonyms: ER68203-00

E7820 (ER68203-00) is an angiogenesis inhibitor by suppressing integrin a2 (a cell adhesion molecule expressed on endothelial cells).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

E7820, CAS 289483-69-8

Pack Size	Availability	Price/USD
1 mg	In stock	$ 30.00
2 mg	In stock	$ 44.00
5 mg	In stock	$ 63.00
10 mg	In stock	$ 80.00
25 mg	In stock	$ 147.00
50 mg	In stock	$ 222.00
100 mg	In stock	$ 357.00
200 mg	In stock	$ 529.00
1 mL * 10 mM (in DMSO)	In stock	$ 77.00

Bulk Inquiry

Select Batch

Purity: 99.11%

Purity: 98.48%

Purity: 98.31%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	E7820 (ER68203-00) is an angiogenesis inhibitor by suppressing integrin a2 (a cell adhesion molecule expressed on endothelial cells).
In vitro	E7820 inhibits proliferation of HUVEC induced by either bFGF (IC50: 0.10 μg/mL) and VEGF (IC50: 0.081 μg/mL) in serum-free medium. E7820 also inhibits both bFGF- (IC50: 0.20 μg/mL) and VEGF-driven (IC50: 0.24 μg/mL) tube formation of HUVEC in this assay[3].
In vivo	E7820 (50 mg/kg) with erlotinib has a significantly synergistic antitumor effect in three xenograft models without severe body weight loss. E7820 (50 mg/kg) and erlotinib decrease MVD and enhance apoptosis in tumor-associated endothelial cells, inhibit tumor cell proliferation and enhanced apoptosis, and enhance inhibition of cell proliferation and apoptosis through activation of both intrinsic and extrinsic apoptosis pathways in human NSCLC xenograft models[1]. E7820 shows anti-tumor activity at doses of 50, 100, and 200 mg/kg in the tumor growth and α2-integrin expression experiments[2]. E7820 (50, 100, and 200 mg/kg) inhibits tumor growth in a dose-dependent manner in all s.c. xenograft models. E7820 completely inhibits s.c. tumor growth of LoVo tumor cells and also regresses the tumor mass of KP-1 tumor cells at the dosages of both 100 and 200 mg/kg[3].

Synonyms	ER68203-00
Molecular Weight	336.37

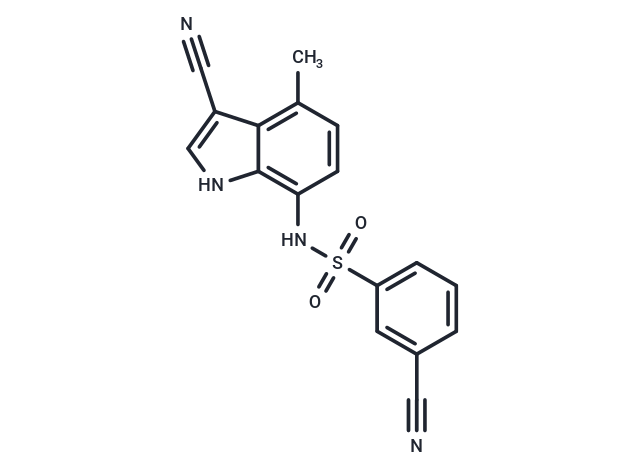

Formula	C17H12N4O2S
CAS No.	289483-69-8

Storage

store at low temperature

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: Insoluble

DMSO: 33 mg/mL

References and Literature

1. Ito K, Semba T, Uenaka T, et al. Enhanced anti‐angiogenic effect of E7820 in combination with erlotinib in epidermal growth factor receptor–tyrosine kinase inhibitor‐resistant non‐small‐cell lung cancer xenograft models[J]. Cancer science, 2014, 105(8): 1023-1031. 2. Keizer R J, Funahashi Y, Semba T, et al. Evaluation of α 2-Integrin Expression as a Biomarker for Tumor Growth Inhibition for the Investigational Integrin Inhibitor E7820 in PreClinicalal and Clinicalal Studies[J]. The AAPS journal, 2011, 13(2): 230-239. 3. Semba T, Funahashi Y, Ono N, et al. An angiogenesis inhibitor E7820 shows broad-spectrum tumor growth inhibition in a xenograft model: possible value of integrin α2 on platelets as a biological marker[J]. Clinicalal Cancer Research, 2004, 10(4): 1430-1438.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Anti-Cancer Drug Library Drug Repurposing Compound Library Anti-Cancer Clinical Compound Library Anti-Cancer Active Compound Library Clinical Compound Library Anti-COVID-19 Compound Library NO PAINS Compound Library Orally Active Compound Library Angiogenesis related Compound Library

Related Products

Related compounds with same targets

Irigenin Cyclo(-RGDfK) Abciximab Arg-Gly-Asp-Ser acetate Natalizumab αvβ6 integrin inhibitor 2 Elarofiban TFA Vedolizumab

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
