Home Tools

BX-912

Catalog No. T1837 CAS 702674-56-4

BX-912 is a specific inhibitor of 3-Phosphoinositide-dependent Kinase-1 (PDK1, IC50: 12 nM). The selectivity of BX-912 is more 10 fold than C-Kit, EGFR, PKA, PKC etc.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

BX-912, CAS 702674-56-4

Pack Size	Availability	Price/USD
1 mg	In stock	$ 48.00
2 mg	In stock	$ 68.00
5 mg	In stock	$ 82.00
10 mg	In stock	$ 147.00
25 mg	In stock	$ 313.00
50 mg	In stock	$ 522.00
100 mg	In stock	$ 703.00
1 mL * 10 mM (in DMSO)	In stock	$ 85.00

Bulk Inquiry

Select Batch

Purity: 99.34%

Purity: 99%

Purity: 98.29%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	BX-912 is a specific inhibitor of 3-Phosphoinositide-dependent Kinase-1 (PDK1, IC50: 12 nM). The selectivity of BX-912 is more 10 fold than C-Kit, EGFR, PKA, PKC etc.
Targets&IC50	PDK1:12 nM
In vitro	BX-912 exhibits inhibitory effects on ChcK1 (IC50: 0.83 μM), PKA (IC50: 0.11 μM), c-kit (IC50: 0.85 μM), and KDR (IC50: 0.41 μM). In tumor cells, BX-912 blocks the PDK1/Akt signaling pathway, inhibiting adhesion-dependent growth in various tumor cells (e.g., PC-3 cells) or inducing apoptosis. The compound shows a 30-fold higher sensitivity to growth inhibition by BX-912 in cancer cell lines with elevated Akt activity in soft agar than in tissue culture plastics, consistent with the cell survival function of the PDK1/Akt signaling pathway, especially significant for non-adherent cells. BX-912 significantly inhibits PDK1 enzyme activity without affecting AKT2 activity (IC50 >10 μM), making it a direct inhibitor of PDK1. It notably increases the count of MDA-468 cells with 4N DNA content and arrests cells in the G2/M phase. BX-912 effectively suppresses cell growth (IC50: 0.32 μM) and is highly effective in inhibiting HCT-116 cell growth at 1 μM (inhibition rate of 96%).
Kinase Assay	Kinase assays: PDK1 is assayed in a direct kinase assay and a coupled assay format measuring PDK1- and PtdIns-3,4-P2-mediated activation of AKT2. For the coupled assay, the final assay mixture (60 μL) contained: 15 mM MOPS, pH 7.2, 1 mg/mL bovine serum albumin, 18 mM β-glycerol phosphate, 0.7 mM dithiothreitol, 3 mM EGTA, 10 mM MgOAc, 7.5 μM ATP, 0.2 μCi of [γ- 33P]ATP, 7.5 μM biotinylated peptide substrate (biotin-ARRRDGGGAQPFRPRAATF), 0.5 μL of PtdIns-3,4-P2-containing phospholipid vesicles, 60 pg of purified recombinant human PDK1, and 172 ng of purified recombinant human AKT2. After incubation for 2 hours at room temperature, the biotin-labeled peptide is captured from 10 μL of the assay mixture on streptavidin-coated SPA beads, and product formation is measured by scintillation proximity in a Wallac MicroBeta counter. The product formed is proportional to the time of incubation and to the amount of PDK1 and inactive AKT2 added. PDK1 is added at suboptimal levels so that the assay could sensitively detect inhibitors of AKT2 activation as well as direct inhibitor BX912 of PDK1 or AKT2. To measure PDK1 activity directly, the final assay mixture (60 μL) contained 50 mM Tris-HCl, pH 7.5, 0.1 mM EGTA, 0.1 mM EDTA, 0.1% β-mercaptoethanol, 1 mg/mL bovine serum albumin, 10 mM MgOAc, 10 μM ATP, 0.2 μCi of [γ-33P]ATP, 7.5 μM substrate peptide (H2N-ARRRGVTTKTFCGT), and 60 ng of purified recombinant human PDK1. After 4 hours at room temperature, 25 mM EDTA is added and a portion of the reaction mixture on P81 phosphocellulose paper is spotted. The filter paper is washed three times with 0.75% phosphoric acid and once with acetone. After drying, the filter-bound labeled peptide is quantified using a phosphorimager.
Cell Research	Cells such as MDA-468, MDA-453 are seeded at a low density (1.5-3 × 103 cells/well, 0.1 mL/well, 96-well plates) and are incubated overnight. BX912 treatments are made by adding 10 μL/well of the compound in 1% dimethyl sulfoxide and growth medium (final concentration of dimethyl sulfoxide, 0.1%), followed by brief shaking. Treated cells are incubated for 72 hours, and viability is measured by the addition of 10 μL of the metabolic dye WST-1. The WST-1 signal is read in a plate reader at 450 nm, and a no cell, or zero time cell, background is subtracted to calculate the net signal. (Only for Reference)

Molecular Weight	471.35

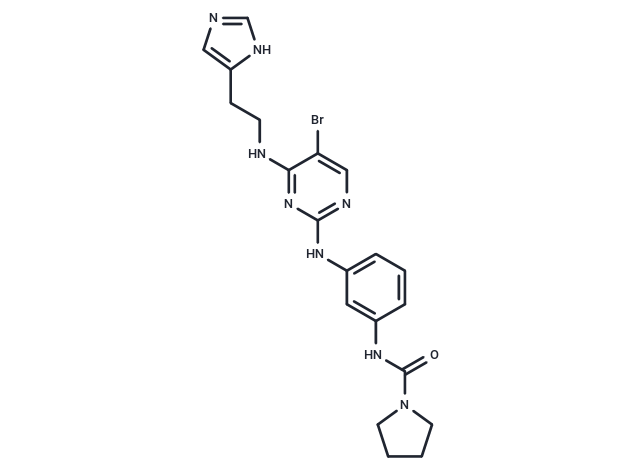

Formula	C20H23BrN8O
CAS No.	702674-56-4

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

H2O: < 1 mg/mL (insoluble or slightly soluble)

DMSO: 87 mg/mL (184.6 mM)

Ethanol: 87 mg/mL (184.6 mM)

References and Literature

1. Feldman RI, et al. J Biol Chem. 2005, 280(20), 19867-19874.

Related compound libraries

This product is contained In the following compound libraries：

Inhibitor Library Kinase Inhibitor Library Highly Selective Inhibitor Library Anti-Cancer Active Compound Library Tyrosine Kinase Inhibitor Library Oxidation-Reduction Compound Library Anti-Breast Cancer Compound Library Target-Focused Phenotypic Screening Library Anti-Obesity Compound Library Glycolysis Compound Library

Related Products

Related compounds with same targets

Soyasapogenol B Erdafitinib SCFSkp2-IN-2 Lucidenic acid B ACBI1 PND-1186 MG 149 RAPTA-C

Dose Conversion

You can also refer to dose conversion for different animals. More

In vivo Formulation Calculator (Clear solution)

Step One: Enter information below

Dosage

mg/kg

Average weight of animals

Dosing volume per animal

Number of animals

Step Two: Enter the in vivo formulation

% DMSO+

% +

% Tween 80+

% ddH₂O

%DMSO+

Calculate Reset

Calculation results:

Working concentration: mg/ml;

Method for preparing DMSO master liquid: mg drug pre-dissolved in μL DMSO (Master liquid concentration mg/mL)，Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation：Take μL DMSO master liquid, next add μL PEG300， mix and clarify, next add μL Tween 80，mix and clarify, next add μL ddH₂O, mix and clarify.

Note:

Be sure to add the solvent(s) in order. Physical methods such as vortex, ultrasound or hot water bath can be used to aid dissolving.

Calculator

Molarity Calculator

Dilution Calculator

Reconstitution Calculation

Molecular Weight Calculator

Mass

Concentration

Volume

Molecular Weight

Molarity Calculator allows you to calculate the

Mass of a compound required to prepare a solution of known volume and concentration
Volume of solution required to dissolve a compound of known mass to a desired concentration
Concentration of a solution resulting from a known mass of compound in a specific volume

See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

Concentration (Start)

Volume (Start)

Concentration (End)

Volume (End)

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Molecule Formula

Molecular Weight g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
