D4476

Catalog No. T2449   CAS 301836-43-1
Synonyms: D 4476, Casein Kinase I Inhibitor

D4476 (Casein Kinase I Inhibitor) is an effective, selective, and cell-permeant CK1 (casein kinase 1) inhibitor( IC50=300 nM in a cell-free assay).

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

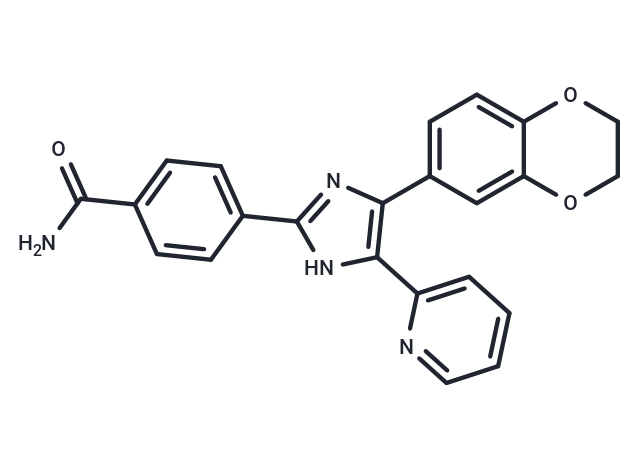

D4476 Chemical Structure
D4476, CAS 301836-43-1
Pack Size Availability Price/USD Quantity
1 mg In stock $ 36.00
2 mg In stock $ 50.00
5 mg In stock $ 71.00
10 mg In stock $ 87.00
25 mg In stock $ 162.00
50 mg In stock $ 238.00
100 mg In stock $ 429.00
200 mg In stock $ 629.00
500 mg In stock $ 987.00
1 mL * 10 mM (in DMSO) In stock $ 78.00
Bulk Inquiry
Get quote
Select Batch
Purity: 99.96%
Purity: 99.8%
Purity: 99.02%
Contact us for more batch information
Biological Description
Chemical Properties
Storage & Solubility Information
Description D4476 (Casein Kinase I Inhibitor) is an effective, selective, and cell-permeant CK1 (casein kinase 1) inhibitor( IC50=300 nM in a cell-free assay).
Targets&IC50 CK1 (casein kinase 1):300 nM
In vitro D4476 (10 μM) effectively inhibits CK1 and ALK5 with the activities of about 7% and 22% versus control group, respectively. In H4IIE hepatoma cells, D4476 specifically inhibits the phosphorylation of endogenous forkhead box transcription factor O1a (FOXO1a) on Ser322 and Ser325, without affecting the phosphorylation of other sites.[1] D4476 induces cytotoxicity in ANBL6, INA6 and RPMI8226 lines; MM1S and U266 lines are less sensitive; and OPM1 line is totally resistant. High concentrations (50 μM) D4476 induced toxicity in all multiple myeloma (MM) lines. In MM cells, D4476 increases the protein levels of TP53, P27, and FADD, as well as the cell cycle progression and induction of apoptosis.[2] Treatment of leukemia stem cells (LSCs) with D4476 shows highly selective killing of LSCs over normal HSPCs.[3]
Kinase Assay CK1 kinase assay: All protein kinase assays (25 μL) are carried out at room temperature (21℃). Assays are performed for 40 min using a Biomek 2000 Laboratory Automation Workstation in a 96-well format. The concentrations of magnesium acetate and [γ-33P]ATP (800 cpm/pmol) in the assays are 10 mM and 0.1 mM, respectively. Assays are initiated with MgATP and stopped by the addition of 5 μL of 0.5 M orthophosphoric acid. Aliquots are then spotted on to P30 ?ltermats, washed four times in 75 mM phosphoric acid to remove ATP, once in methanol, then dried and counted for radioactivity. CK1 δ (5-20 m-units), diluted in 20 mM Hepes, pH 7.5, 0.15 M NaCl, 0.1 mM EGTA, 0.1% (v/v) Triton X-100, 5 mM dithiothreitol, 50% (v/v) glycerol, is assayed against the peptide RRKDLHDDEEDEAMSITA in an incubation containing 20 mM Hepes, pH 7.5, 0.15 M NaCl, 0.1 mM EDTA, 5 mM DTT, 0.1% (v/v) Triton X-100 and 0.5 mM substrate peptide.
Cell Research MM cells are seeded in triplicate into 96-well plates in 100 μL culture media. D4476 is added to each well at concentrations of 0, 5, 10, 20, 30, 40, and 50 μM in another 100 μL culture media. Cell viability is measured with MTT at the 72 h drug exposure. Absorbance is measured at 570 nm with spectrophotometer.(Only for Reference)
Synonyms D 4476, Casein Kinase I Inhibitor
Molecular Weight 398.41
Formula C23H18N4O3
CAS No. 301836-43-1

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 39.8 mg/mL (100 mM)

Ethanol: 19.9 mg/mL (50 mM)

TargetMolReferences and Literature

1. Rena G, et al. EMBO Rep. 2004, 5(1), 60-65. 2. Hu Y, et al. Leukemia. 2015, 29(2), 474-482. 3. Järås M, et al. J Exp Med. 2014,211(4), 605-612. 4. Bain J, et al. Biochem J. 2003, 371(Pt 1), 199-204.

Related compound libraries

This product is contained In the following compound libraries:
Tyrosine Kinase Inhibitor Library Wnt/Hedgehog/Notch Compound Library Autophagy Compound Library Apoptosis Compound Library Target-Focused Phenotypic Screening Library Anti-Metabolism Disease Compound Library Bioactive Compound Library Angiogenesis related Compound Library Metabolism Compound Library Stem Cell Differentiation Compound Library

Related Products

Related compounds with same targets
IC261 Casein kinase 1δ-IN-10 PI-828 CKI-7 free base Longdaysin WAY-297174 CK2 inhibitor 2 XL413 hydrochloride

TargetMolDose Conversion

You can also refer to dose conversion for different animals. More

TargetMol In vivo Formulation Calculator (Clear solution)

Step One: Enter information below
Dosage
mg/kg
Average weight of animals
g
Dosing volume per animal
ul
Number of animals
Step Two: Enter the in vivo formulation
% DMSO
%
% Tween 80
% ddH2O
Calculate Reset

TargetMolCalculator

Molarity Calculator
Dilution Calculator
Reconstitution Calculation
Molecular Weight Calculator
=
X
X

Molarity Calculator allows you to calculate the

  • Mass of a compound required to prepare a solution of known volume and concentration
  • Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Concentration of a solution resulting from a known mass of compound in a specific volume
See Example

An example of a molarity calculation using the molarity calculator
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
Enter 197.13 into the Molecular Weight (MW) box
Enter 10 into the Concentration box and select the correct unit (millimolar)
Enter 10 into the Volume box and select the correct unit (milliliter)
Press calculate
The answer of 19.713 mg appears in the Mass box

X
=
X

Calculator the dilution required to prepare a stock solution

Calculate the dilution required to prepare a stock solution
The dilution calculator is a useful tool which allows you to calculate how to dilute a stock solution of known concentration. Enter C1, C2 & V2 to calculate V1.

See Example

An example of a dilution calculation using the Tocris dilution calculator
What volume of a given 10 mM stock solution is required to make 20ml of a 50 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=50 μM, V2=20 ml and V1 is the unknown:
Enter 10 into the Concentration (start) box and select the correct unit (millimolar)
Enter 50 into the Concentration (final) box and select the correct unit (micromolar)
Enter 20 into the Volume (final) box and select the correct unit (milliliter)
Press calculate
The answer of 100 microliter (0.1 ml) appears in the Volume (start) box

=
/

Calculate the volume of solvent required to reconstitute your vial.

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial.
Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

g/mol

Enter the chemical formula of a compound to calculate its molar mass and elemental composition

Tip: Chemical formula is case sensitive: C10H16N2O2 c10h16n2o2

Instructions to calculate molar mass (molecular weight) of a chemical compound:
To calculate molar mass of a chemical compound, please enter its chemical formula and click 'Calculate'.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
Molecular mass (molecular weight) is the mass of one molecule of a substance and is expressed n the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
