NVP-AEW541

Catalog No. T6080 CAS 475489-16-8

Synonyms: AEW541

NVP-AEW541 (AEW541), a potent inhibitor of IGF-1R(IC50=150 nM) and InsR(IC50=140 nM), exhibits excellent efficiency and specificity for IGF-1R in a cell-based assay.

All products from TargetMol are for Research Use Only. Not for Human or Veterinary or Therapeutic Use.

NVP-AEW541, CAS 475489-16-8

Pack Size	Availability	Price/USD
1 mg	In stock	$ 41.00
2 mg	In stock	$ 59.00
5 mg	In stock	$ 97.00
10 mg	In stock	$ 155.00
25 mg	In stock	$ 286.00
50 mg	In stock	Inquiry
1 mL * 10 mM (in DMSO)	In stock	$ 97.00

Bulk Inquiry

Select Batch

Purity: 99.55%

Purity: 98.7%

Purity: 96.03%

Biological Description

Chemical Properties

Storage & Solubility Information

Description	NVP-AEW541 (AEW541), a potent inhibitor of IGF-1R(IC50=150 nM) and InsR(IC50=140 nM), exhibits excellent efficiency and specificity for IGF-1R in a cell-based assay.
Targets&IC50	IGF-1R:0.15 μM, Insulin receptor:0.14 μM
In vitro	NVP-AEW541 also inhibits InsR, Tek, Flt1 and Flt3 with IC50 of 140 nM, 530 nM, 600 nM and 420 nM in purified kinases/recombinant kinase domains assay. NVP-AEW541 is more selective and shows 27-fold more potent than InsR at the cellular level. NVP-AEW541 suppresses the IGF-I-mediated survival, soft agar and proliferation of MCF-7 cells with IC50 of 0.162 μM, 0.105 μM and 1.64 μM, respectively. NVP-AEW541 also reduces the level of phospho-IGF-1R and phospho-PKB in NWT-21 cells. [1] NVP-AEW541 shows growth inhibitory effect on TC-71 musculoskeletal sarcoma cells in low-serum medium as well as in 10% FBS–containing medium. NVP-AEW541 inhibits cell cycle progression and induces specific G1 arrest in sarcoma cell lines (TC-71, SK-N-MC, SaoS-2, RD/18 and RH4). [2] NVP-AEW541 could inhibit the growth of human neuroblastoma cells with IC50 of 0.4-6.8 μM. An increase in the hypodiploid fraction and the depletion of the S and G2-M compartments could be detected in these cell lines. NVP-AEW541-driven inhibition of IGF-1R causes a reduction of phosphorylation of Akt, but not of Erk1 and Erk2 in neuroblastoma cells. [3] NVP-AEW541 inhibits glioma cell growth and disrupts the autocrine loop initiated by HIF1α stabilization. [4] A recent study shows that NVP-AEW541 suppresses the proliferation and viability of PC3, DU145, and 22Rv1 prostate cancer cells, without necessarity of associated cell death. NVP-AEW541 decreases phospho-Akt levels in 22Rv1 and DU415 cells but not PC3 cells, without affecting total Akt levels, which shows that PTEN status could determine the effectiveness of NVP-AEW541 with essential Akt. NVP-AEW541-induced radiosensization is dependent on Akt activation status. NVP-AEW541 could increase the H2AX phosphorylation (a measure of DSBs) in PC3, DU145, and 22Rv1 cells. [5]
In vivo	NVP-AEW541 (50 mg/kg, p.o.) results in abrogation of basal and IGF-I-induced receptor, and PKB and MAPK phosphorylation, with T/C value of 14% in the NWT-21 tumor xenograft. [1] NVP-AEW541 (50 mg/kg) causes tumor shrinkage in both HTLA-230 and SK-N-BE2c xenografts, without signs of systemic toxicity. NVP-AEW541 could inhibit tumor invasion both in Matrigel-coated chambers and in HTLA-230 xenografts. [3]
Kinase Assay	In vitro kinase assays: NVP-AEW541 is dissolved in DMSO (10 mM) and stored at -20 °C. Dilutions are freshly made in DMSO/water 1:1. The final concentration of DMSO in the enzyme assays is <0.5 %. The protein kinase assays are carried out in 96-well plates at RT and terminated by the addition of 20 μL of 125 mM EDTA. Subsequently, 30 μL (c-Abl, c-Src, IGF-1R) of the reaction mixture are transferred onto Immobilon-PVDF presoaked for 5 min with methanol, rinsed with water, then soaked for 5 min with 0.5 % H3PO4 and mounted on vacuum manifold. After spotting all samples, vacuum is connected and each well rinsed with 200 μL 0.5 % H3PO4. Membranes are removed and washed 4× on a shaker with 1.0 % H3PO4, once with ethanol. After drying, mounting in Packard TopCount 96-well frame, and adding of 10 μL/well of Microscint, membranes are counted. IC50 values are calculated by linear regression analysis of the percentage inhibition of NVP-AEW541 in duplicate, at four concentrations (usually 0.01, 0.1, 1, and 10 μM). One unit of protein kinase activity is defined as 1 nmol of 33P transferred from [γ33P]ATP to the substrate protein per minute per mg of protein at 37 °C.
Cell Research	Between 3 × 103 and 6 × 103 cells/well are seeded in 96-well plates with a total media volume of 100 μL/well. Increasing concentrations of NVP-AEW541 is added 24 hours thereafter in quadruplicate. 72 hours later, cells are fixed by addition of 25 μL/well Glutaraldehyde (20%) and incubation for 10 min at RT. Cells are then washed 2× with 200 μL/well Water and 100 μL Methylene Blue (0.05%) is added. After incubation for 10 min at RT, cells are washed 3× with 200 μL/well Water. 200 μL/well HCl (3%) is added, and following incubation for 30 min at RT on a plate shaker, absorbance is measured at 650 nm.(Only for Reference)

Synonyms	AEW541
Molecular Weight	439.55

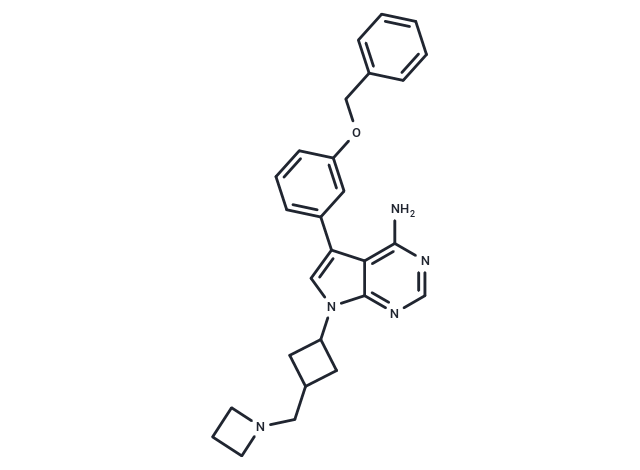

Formula	C27H29N5O
CAS No.	475489-16-8

Storage

Powder: -20°C for 3 years | In solvent: -80°C for 1 year

Solubility Information

DMSO: 51 mg/mL(116 mM)

H2O: < 1 mg/mL (insoluble or slightly soluble)

Ethanol: < 1 mg/mL (insoluble or slightly soluble)

References and Literature

1. García-Echeverría C, et al. Cancer Cell. 2004, 5(3), 231-239. 2. Scotlandi K, et al. Cancer Res, 2005, 65(9), 3868-3876. 3. Tanno B, et al. Clin Cancer Res. 2006, 12(22), 6772-6780. 4. Gariboldi MB, et al. Biochem Pharmacol, 2010, 80(4), 455-462. 5. Isebaert SF, et al. Int J Radiat Oncol Biol Phys, 2011, 81(1), 239-247.
